Topcon TRC-50IX Retinal Camera W/ Image Manager & Adjust Instrument Table ~32074
Item specifics
Product details
Manufacturer | Topcon |
Item: | Topcon TRC-50IX Retinal Camera W/ Image Manager & Adjust Instrument Table |
Model/Cat # | TRC-50IX |
Serial No. | 9734286 |
Made In: | USA |
Date of Manufacture: | U/K |
Voltage: 120V 50-60Hz 270VA
Short description...
- 1. Sale is for imaged items only.
- 2. Signs of some use
- 3. Has been tested at our end & is in good functionality
*Cosmetically in very good shape

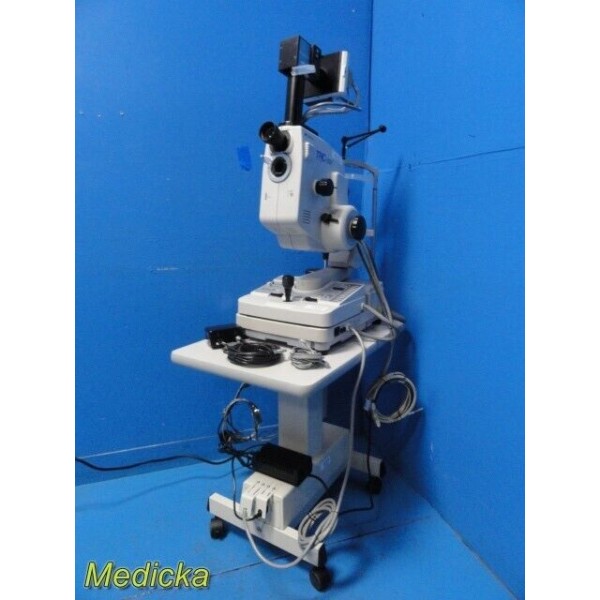

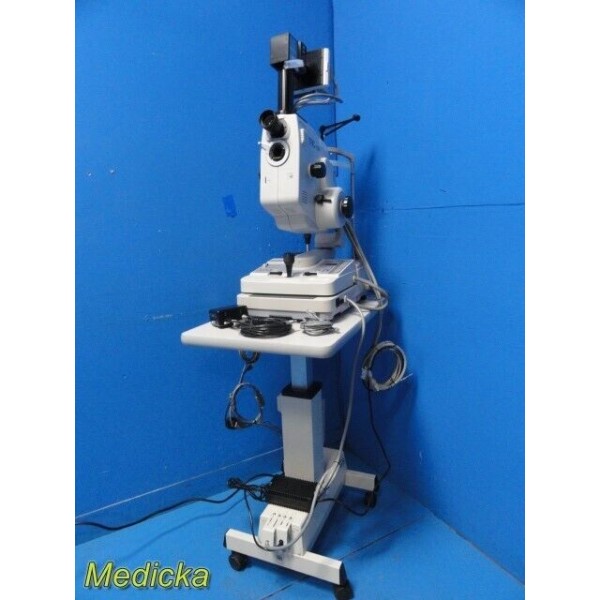

*Topcon Adjustable Instruments Table AIT-15
-Sturdy table going up & down
-Nicely Equipped W/ 2 outlets for Plug In
-Lockable wheels
-Freely Mobile
-Has some scratches and scuffs on it

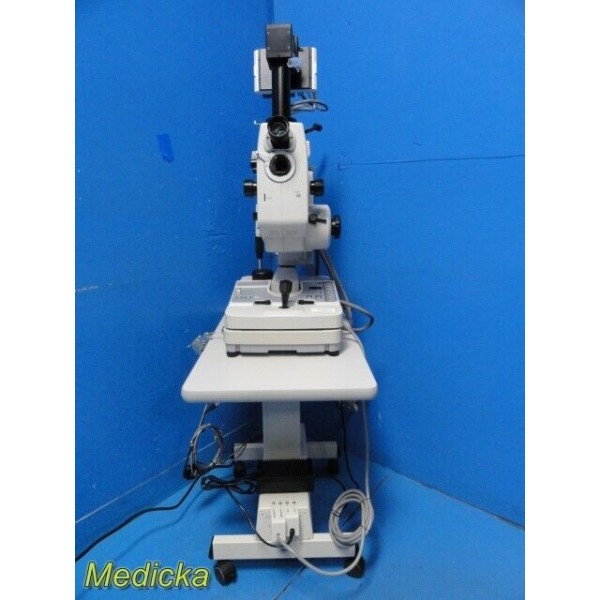

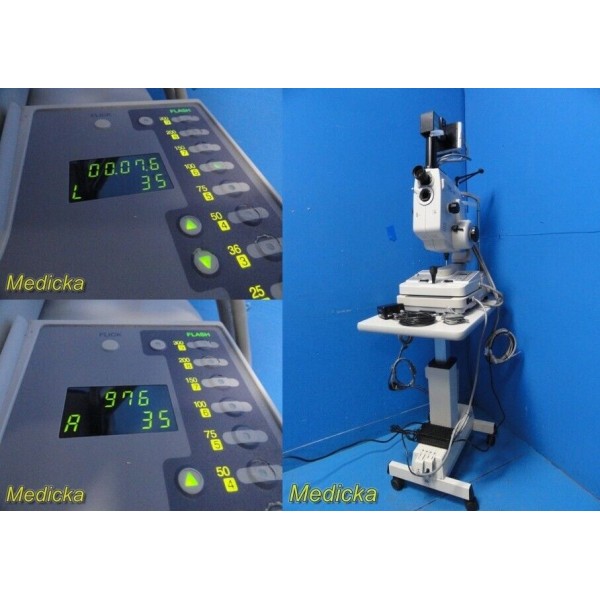

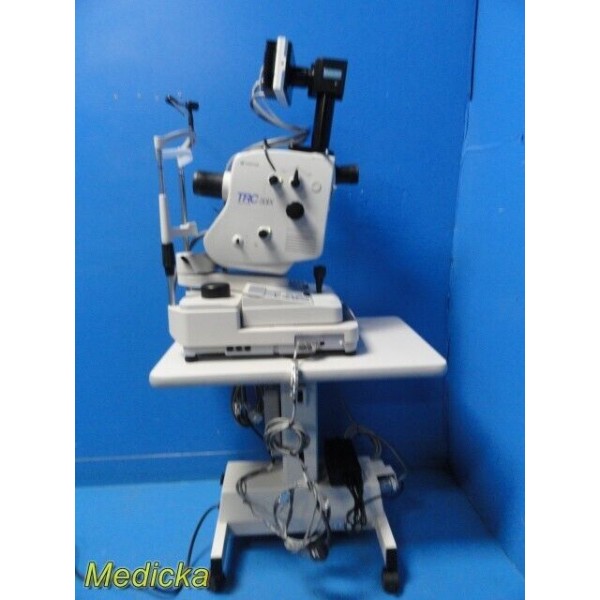

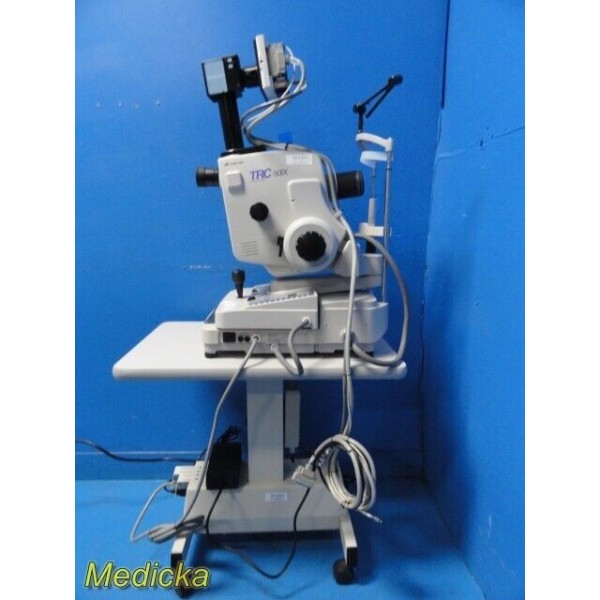

*Topcon TRC-50IX Retinal Camera
-Chin rest is adjustable
-No chin rest pads included
-All knobs are working & responsive
-Joystick is responsive and moving the control well

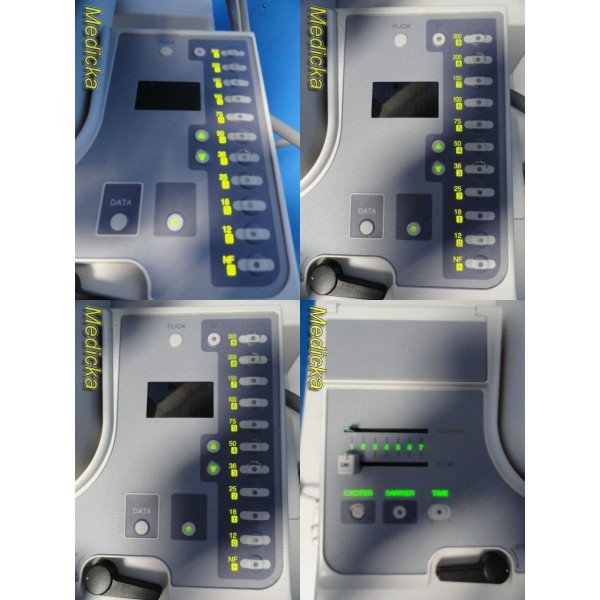

-All soft pads are responsive
-Normal knob covering is missing

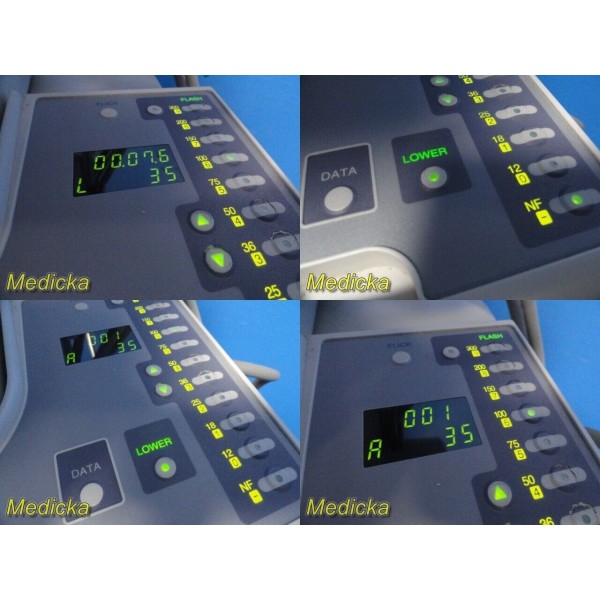

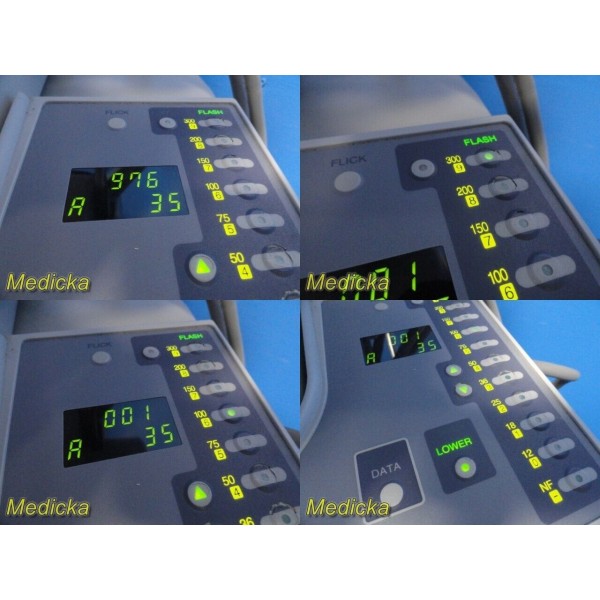

-LCD is bright; All soft pads are responsive
-Maybe some degeneration of soft pads due to use
-NO digital camera attached at front
-NO dents or cracks have been observed on the retinal camera console
-Pointer is working
*Camera equipped ophthalmic Imaging System Device is mounted on top

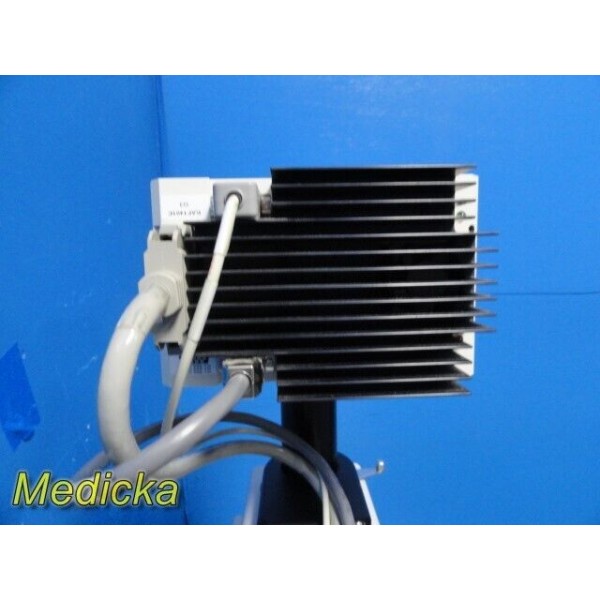

*Comes W/ its power supply mounted at bottom
*Data: DC power cable are existing from the ophthalmic imaging device
*Retinal Camera is hooked up with synchronization box attached at the table positioner

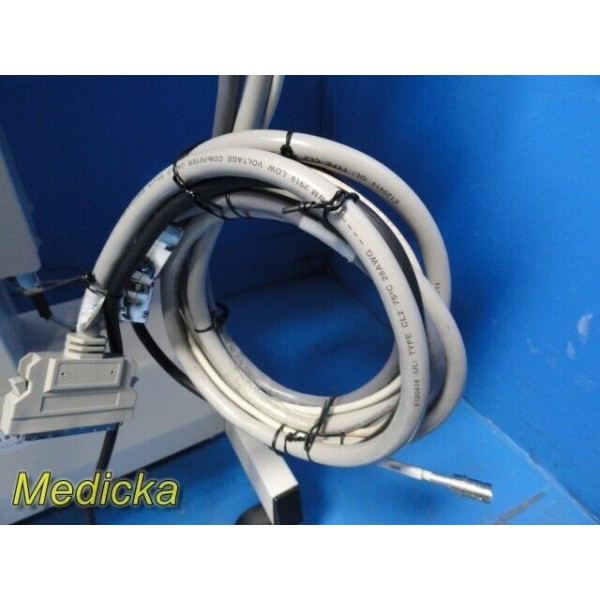

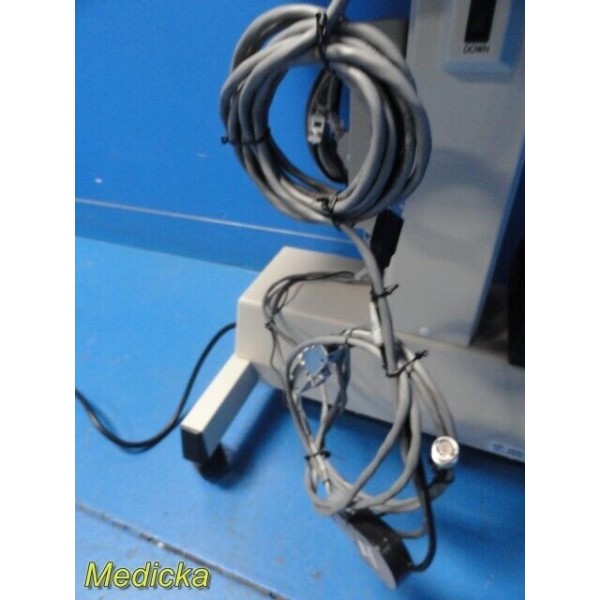

*Comes with a black console W/ USB Interface Cable as well as Ethernet Cable
*SYSTEM DOES NOT INCLUDE THE FOLLWING:
-Laptop or CPU workstation W/ Monitor & Accessories
-Imagenet or other software
-Digital Camera
*May not have all the accessories, kindly check W/ Topcon for more details
*Unit is not labelled as patient ready as unable to check in detail due to lack of accessories and expertise
*Please review images & check for compatibility before bidding for the item
KNOW THIS DEVICE BEFORE YOU BUY !!!
Specifications of the Topcon TRC-50IX Fundus Camera:
High-end retinal camera for Color, FAG, Red-free & ICG photography’s. The finest optical performance featuring full digital capability assures superb image to enhance every clinical efficiency.
Topcon TRC-50IX Fundus Camera The ultimate camera for all photographic applications!
This tri-functional camera sets the standard for ICG, fluorescein, and color imaging, and is designed with the added flash settings necessary for today’s sensitive digital cameras.
A large eyepiece and alignment dots enable the photographer to easily and comfortably align the camera. Superior optical coatings eliminate flare and assure maximum image quality.
- By linked with IMAGEnet2000, wide variety of digital imaging system can be configured at user’s preference and offers clinical versatility with unparallel image quality.
- Image data is automatically transmitted together with left/right eye indicator coding and coverage angle.
- 21-steps adjustment of flash intensity enables results optimized for retina photography.
- Well organized operation panel allows immediate access to all controls in the Topcon TRC-50IX Fundus Camera.
Angle of coverage | 50°,35°, and 20° |
Working distance | 39mm |
Photographic magnifications | With 35mm camera at zero diopter : 1.84X at 50°, 2.45X at 35° and 4.28X at 20° |
Total observation magnification (at zero diopter) | 10X at 50°, 13.3X at 35°, and 23.3X at 20° |
Diopter compensation range for patient’s eye | 0 setting : -10 to +6 diopter |
– setting : -9 to -23 diopter | |
+ setting : +5 to +23 diopter | |
A setting : +22 to +41 dioptor (Ocular anterior photography) | |
Filters | Fluorescein angiography : Spectrotech (Spectrotech type) interference filters |
ICG angiography : IA filter | |
Red free photography : Green filter | |
Other filters : One additional setting for inserting filters of user’s choice | |
Finder | Diopter correction range : -6D to +5D |
Stereo Photography | ±1mm |
Optical head swing | Up to ±30° of the arc lateral swing |
Light source | For observation : 12V 100W halogen lamp |
For photography : Max 300WS Xenon lamp ; adjustable in 21 steps | |
Charging time : 1 second | |
Optical head tilt | Upward 15°to Downward 10° |
Power supply unit | AC 120V, AC 220V, AC230V, and AC 240V adjustable with voltage selector |
Frequency 50 / 60Hz | |
Power consumption | MAX 2000VA / Normal 150VA |
Dimensions (Main body) | 340(W) × 505(D) × 589(H)mm |
Weight (Main body) | 37Kg |
Package includes:-
Topcon TRC-50IX Retinal Camera W/ Image Manager & Adjust Instrument Table
*Items shown in photos are the items that will ship. If it is not shown in the photos, it is not included*
- 6. Sterilized : No
- 7. Manual : No
- 8. Cleaned : Yes
- 9. Shipping Weight : 66 lbs
Stock ID : 32074 (P.O 4012) (WH104)
Comments:
Kindly enlarge the images and see them with zooming.
Concern or query: Ask a Question
Condition: USED, please refer to images for cosmetic condition.
- 1. Overall Condition:- As seen in images - Very Good
- 2. Physical Condition: Please review images before bidding : Very Good
- 3. Working Condition: Has been tested at our end & is in good functionality...will receive item as pictured ……………(offered AS IS)
- 4. “As a whole; the item has not been tested technically or professionally at our end- unable to test --- being sold STRICTLY AS IS! Biomed check is strongly recommended before clinical use!”
- 5. Completeness: (with everything seen in the pictures. Please look at all pictures and go through detail description before bidding.)
- 6. Caution for Buyers:
DESPITE WHAT MAY BE WRITTEN IN THIS LISTING ALL ITEMS ARE SOLD 'AS IS' & 'WHERE IS' AND UNLESS THE SELLER HAS INDICATED OTHERWISE, THERE WILL BE NO REFUND.
Please make sure you are ready to buy if you decide to place a bid.
Available Documentation (manual etc.): nil
Accessories: Comes with everything you see in pictures nothing more nothing less.
Added note: Completely check out item/s prior to use in conjunction with patient care and seller will not take any responsibility for its use on patient.
Maintenance & Certification: - Strongly recommended.
Useful tips: do not scratch or apply sticking plasters.
Seller does not fix or repair any items to make them usable.
If item is listed for parts only, it is specifically mention in the listing as well.
