INTOXIMETER AlcoMonitor CC ...

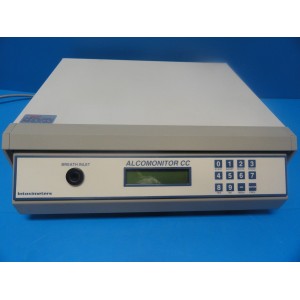

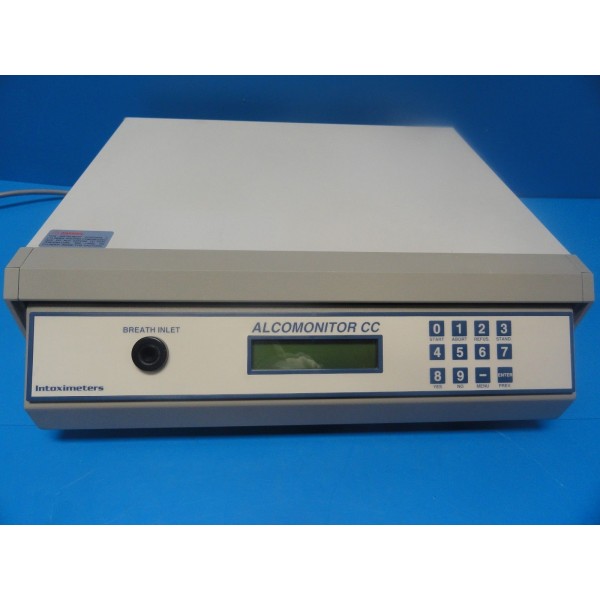

INTOXIMETER AlcoMonitor CC Bench-Top Evidential Breath Test(EBT) Instrument/6826

Item specifics

Condition:
Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully ... Read more
Brand:

INTOXIMETER

MPN:

AlcoMonitor

Model:

AlcoMonitor

More details

On sale On sale!
$876.00

6826

Availability: This product is no longer in stock.

Product details

Manufacturer :



INTOXIMETER

Item:



Bench-Top Evidential Breath Test (EBT) Instrument

Model/Cat #



AlcoMonitor CC

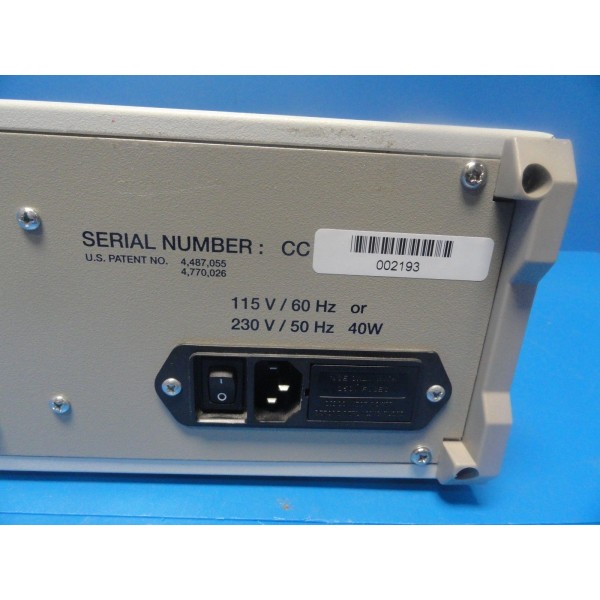

Serial No.



002193

Made In:



USA

Date of manufacture



NA



Voltage                         115/230, 50/60Hz, 40W

Short description……………….

  1. 1.     Sale is for imaged item only
  2. 2.     Package includes

EBT instrument AlcoMonitor

Power cord

Straws, Tank is not included

  1. 3.     The AlcoMonitor CC is a low cost bench-top Evidential Breath Test (EBT) instrument.  The unit offers automatic sampling, a menu driven test protocol, automatic accuracy checks and calibrations.
  2. 4.     Sterilize : No
  3. 5.     Manual : No
  4. Cleaned : yes
  5. Shipping Weight: 35 lbs.
  6. Stocks ID:  6826





Specifications :

Approvals







NHTSA

Listed on the Conforming Products List for Evidential Breath Measurement Devices.

Analytical System







Electrochemical Sensor (Fuel Cell)

Select sensor, manufactured to Intoximeters exacting specifications for accuracy, repeatability and long life.

Measurement Range







0.000 to 0.400 g/210L

The off the shelf instrument is designed to offer a range of results that our customers commonly encounter when performing breath alcohol testing.  Custom ranges, and results reported in a most units of measure are available upon request.

Accuracy and Precision







Highly accurate and precise evidential grade results

Intoximeters fuel cell based instruments set the industry standard for accuracy and precision.  These precise and linear devices offer consistent output that results in evidentiary grade analysis.

Sensor Selectivity







Highly specific for alcohol

Fuel Cell sensors are sought after for their specificity to alcohol.

Sampling Method







Flow, Volume, Breath Drop

Instruments running the standard software require a consistent flow, a minimum volume and then a drop in flow before sampling a deep lung breath.  Alternate sample capture algorithms are available in customized programs.

Testing Environment







Instrument Temperature

The temperature of the instrument is self regulated and monitored.



Ambient Temperature

As long as the instrument is at temperature, the instrument can be used.



Humidity

10% to 100% relative humidity  (The instrument is not designed to be used under water.)



Ambient Pressure

600 mbar to 1400 mbar; 450 mmHg [0 °C] to 1050 in mmHg [0 °C]

Mouthpiece







Style

Common ¼ inch diameter drinking straw.  (one-way check valve built into the instrument)

Data Input

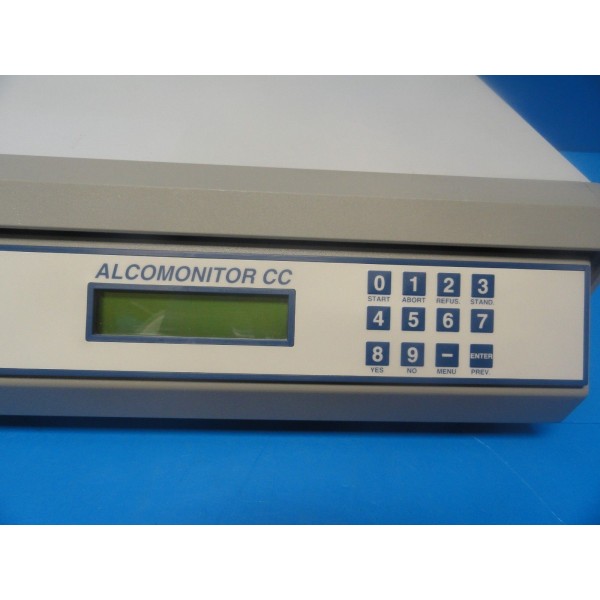

Keyboard

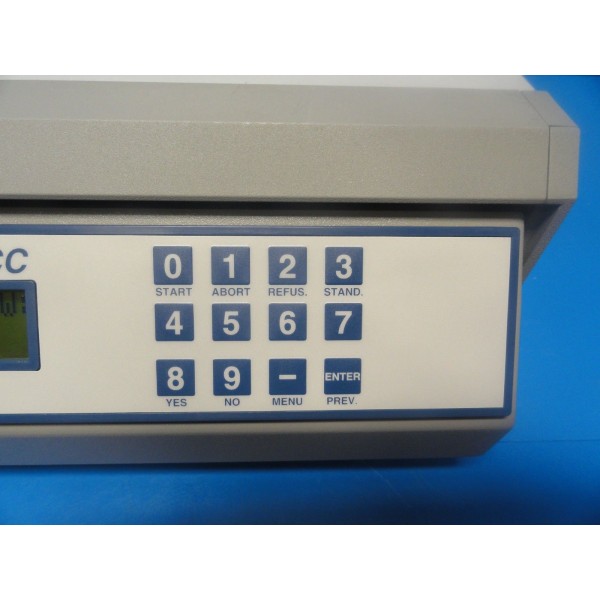

Custom 12 digit numeric touchpad.

Visual Output

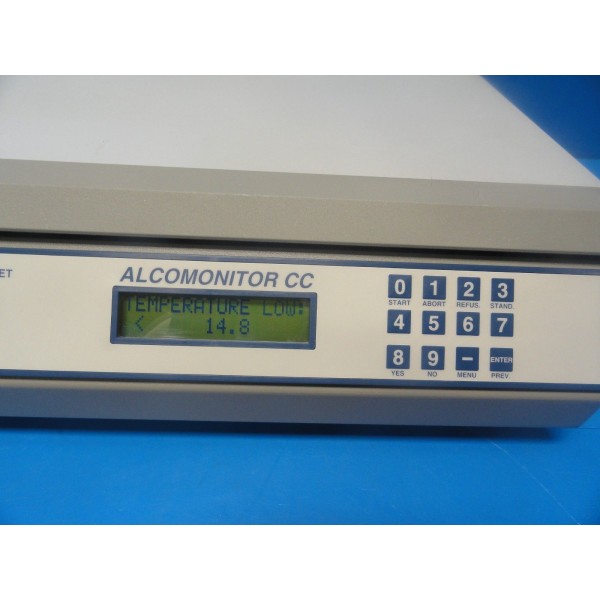

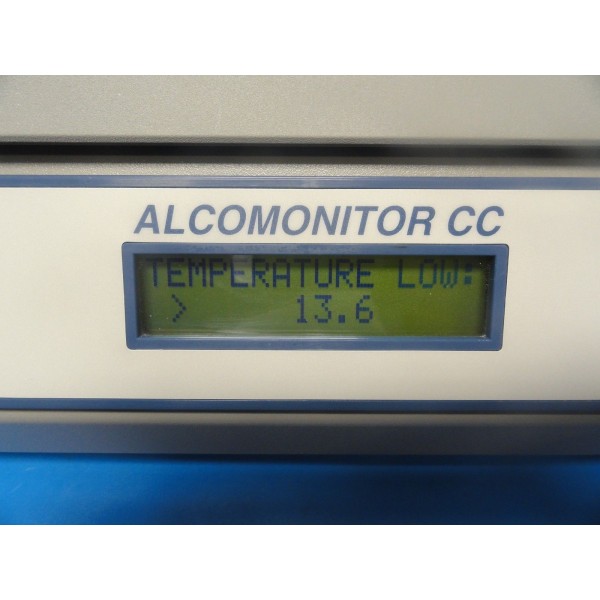

Instrument Display

Two line 16 character backlit LCD.

Audio Output







Beeper

Audible tone to support displayed messaging system.

Data Output







Printer

External Serial Printer  (comes standard with slip printer)

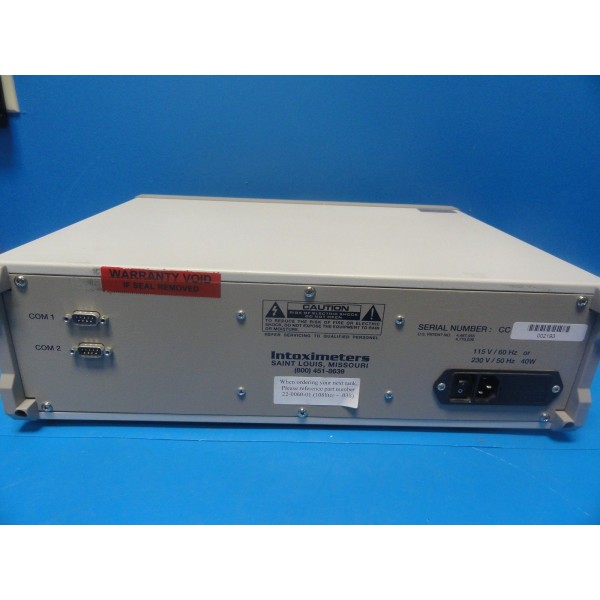

Serial

With  proper software the instrument can communicate via serial modem or directly to computer.

Data Storage







Number of Tests

(128K of RAM) Up to 1,000 tests depending upon collected test data.

Power Options







Power

110/60Hz or 230/50Hz, 80 watts.

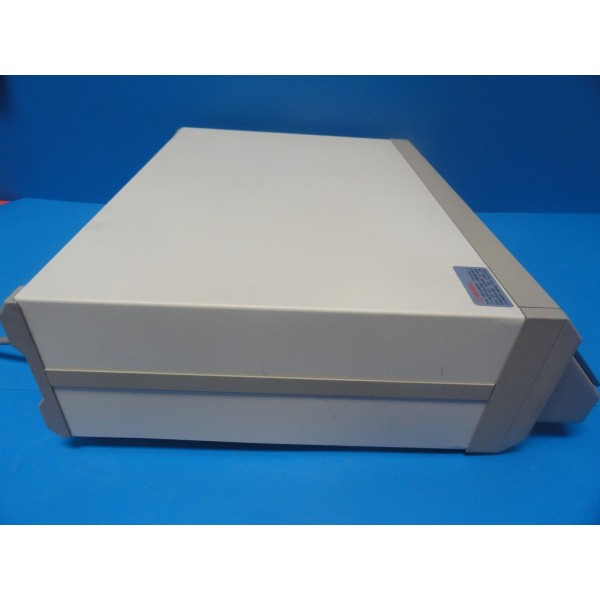

Case Construction







Aluminum

Rugged aluminum frame and shell.

Size, Shape and Weight







Dimensions

5.5” x 17.75” x 16.5”



Weight

14 lbs  (6,350 grams)

Measurement Types







Automatic Direct Breath

Auto sampling of subjects deep lung breath samples.



Manual Direct Breath

Manual sampling option for subjects who cannot meet the minimum flow and volume requirements of the instrument.

Security







Password

Optional password protection is available.

Options







Printers

Will interface with most serial printers.  Both slip and roll impact printers are available through Intoximeters.



Modem

This option output device can be purchased from Intoximeters for exporting data over phone lines.



Software

The AlcoMonitor CC data download is supported by IntoxNet.







Comments:

Kindly enlarge the images and see them with zooming.

Concern or query: Ask a Question

Condition:

  1. 1.  Overall Condition:- As seen in images : Very Good
  2. 2.   Physical Condition:  Please review images before bidding : Very Good
  3. 3.   Working Condition:  Powers on , removed in working condition ………..offered AS IS
  4. 4.  “As a whole; the item has not been tested technically or professionally at our end- unable to test --- being sold STRICTLY AS IS! Biomed check is strongly recommended before clinical use!”
  5. 5.  Completeness: (with everything seen in the pictures. Please look at all pictures and go through detail description before bidding.)
  6. 6.  Caution for Buyers:

DESPITE WHAT MAY BE WRITTEN IN THIS LISTING ALL ITEMS ARE SOLD 'AS IS' & 'WHERE IS' AND UNLESS THE SELLER HAS INDICATED OTHERWISE, THERE WILL BE NO REFUND.

Please make sure you are ready to buy if you decide to place a bid.

 Available Documentation (manual etc.): nil

Accessories: Comes with everything you see in pictures nothing more nothing less.

Added note:  Completely check out item/s prior to use in conjunction with patient care and seller will not take any responsibility for its use on patient.

Maintenance & Certification: - Strongly recommended.

Useful tips: do not scratch or apply sticking plasters.

Seller does not fix or repair any items to make them usable.

If item is listed for parts only, it is specifically mention in the listing as well.
