Olympus LF-2 Fiberoptic Int...

Product details

Voltage: --

Short description...

1. 1.      Sale is for imaged items only.
2. 2.   Signs of some usage.
3. 3.   Has been tested at our end & is in good functionality.

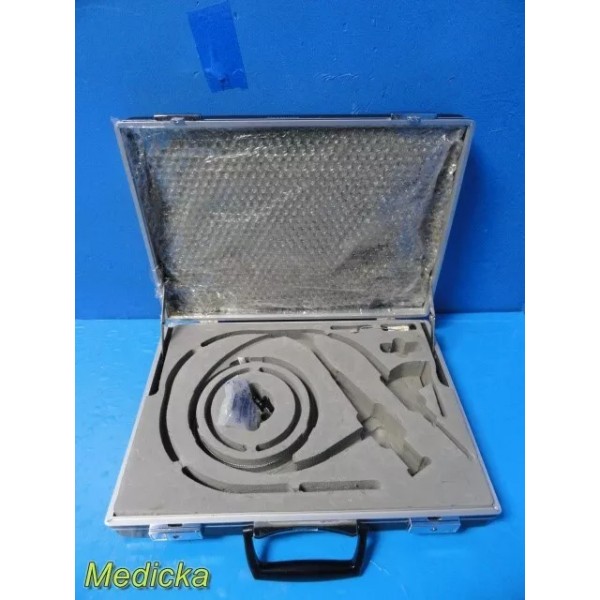

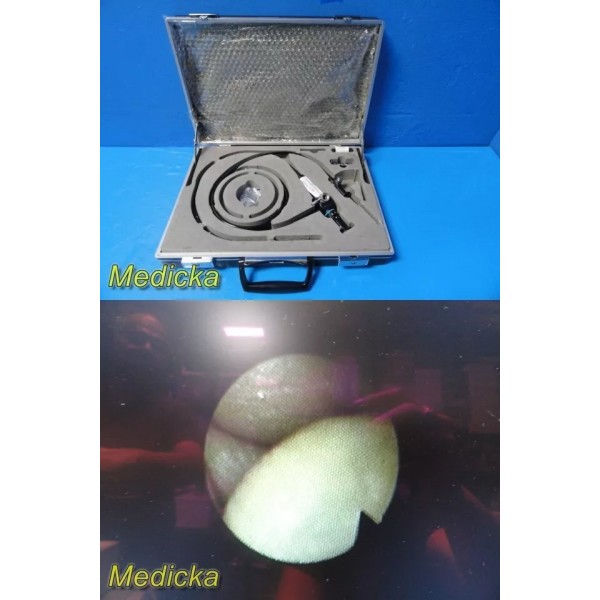

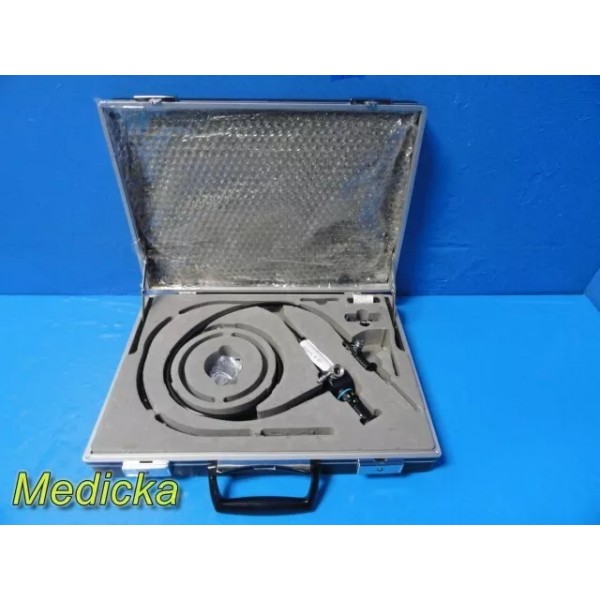

A. Carrying Case

*Top of the case foam is degenerating (Bubble wrap is attached)

*Bottom of the case with cutouts is in very good shape

*Case may have scratches & scuffs

*Clamp locks are intact

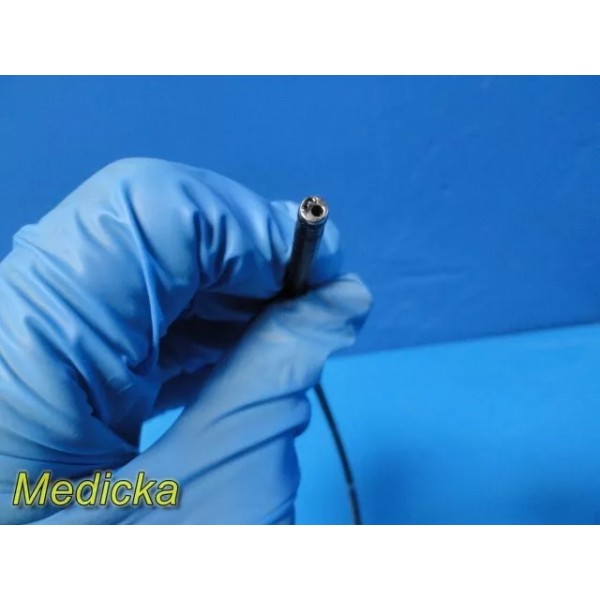

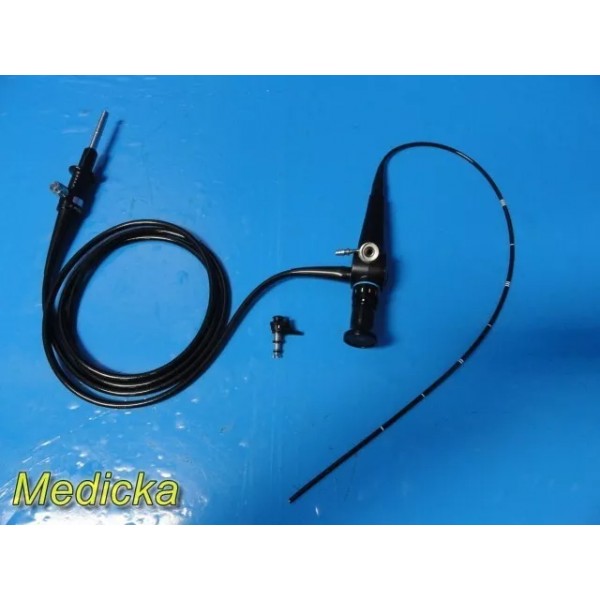

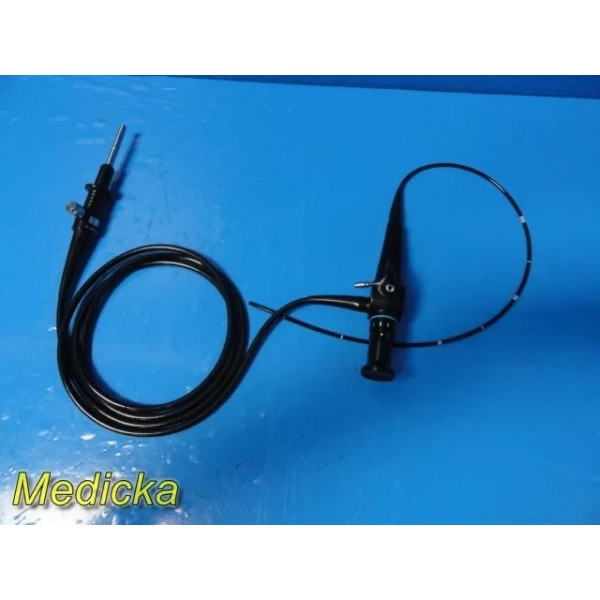

B. Olympus LF-2 Endoscope

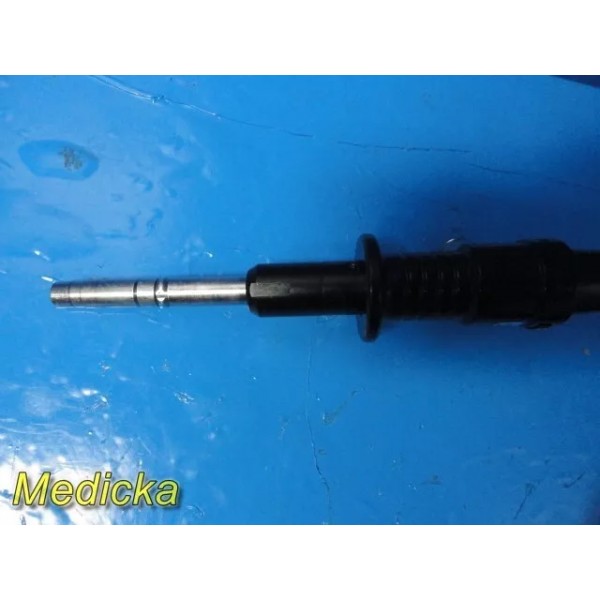

*Insulation Tube

   -Kink & pinch free

   -Insulation is fine

   -Markings are ok

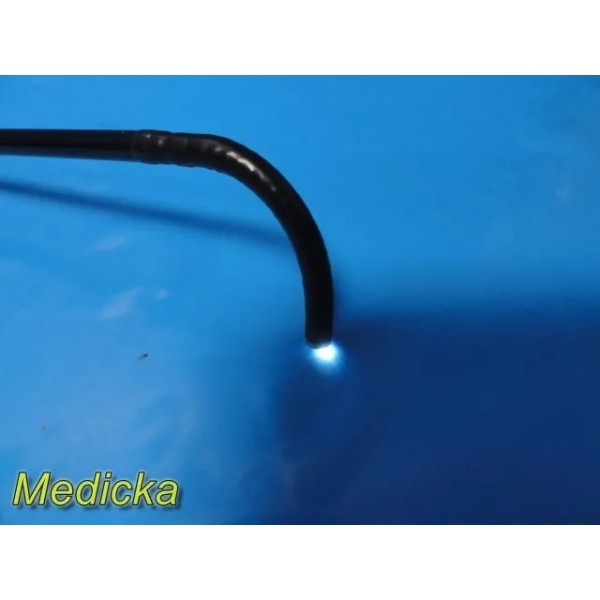

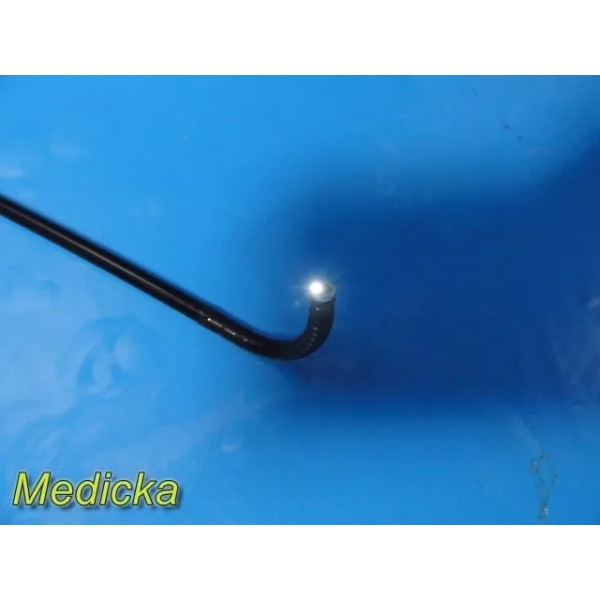

*Angulation is smooth & deflections are well positioned

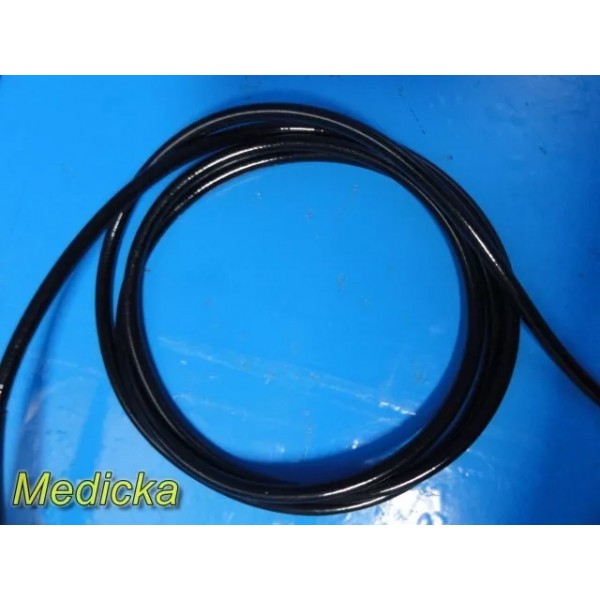

*Light & optical bundles are in great shape with no cuts or tears

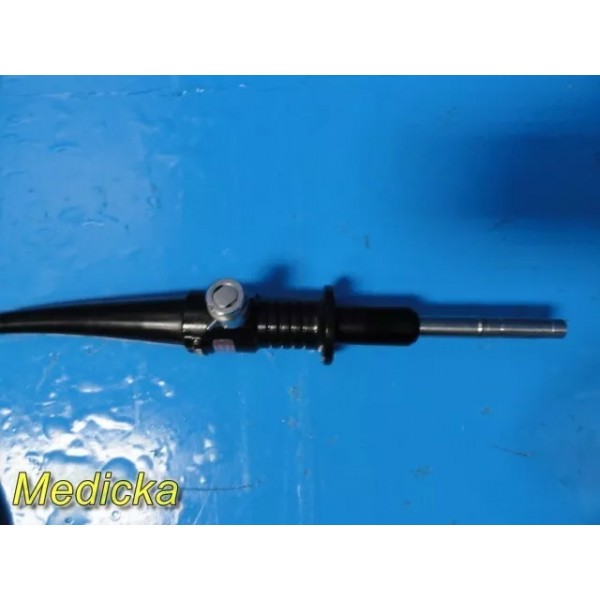

*Strain reliefs are tear free

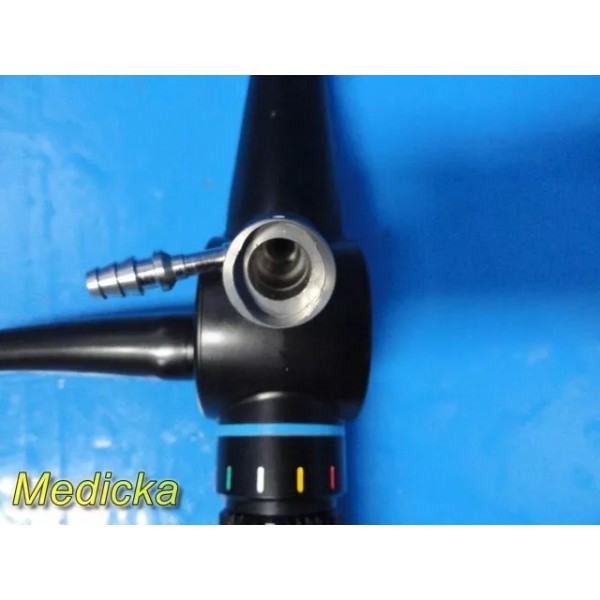

*Olympus LF-2 scope mechanical body is in good shape with no dents or cracks

*Up & down lever is responsive

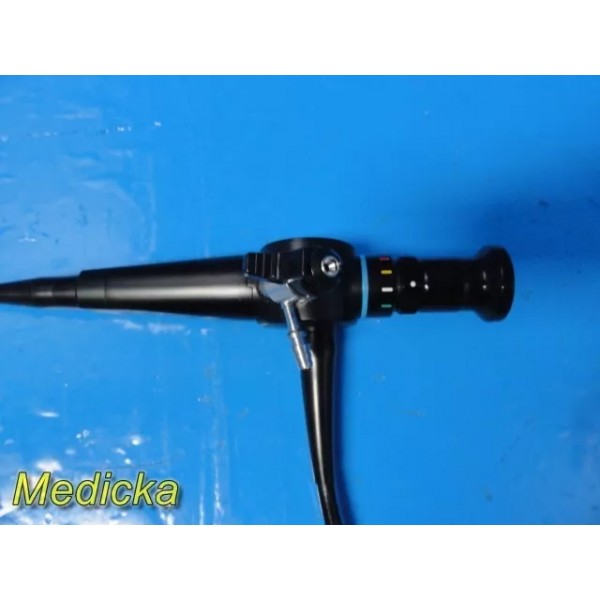

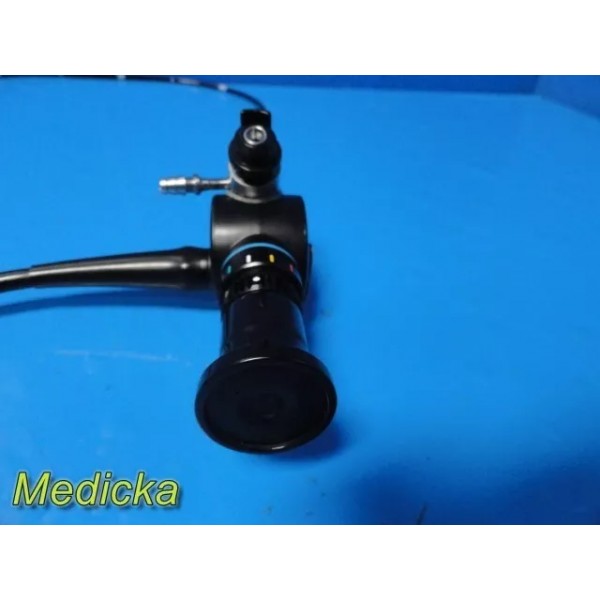

*Eye assembly is in good shape

*Lens is crack free

*Focus adjuster wheel is working

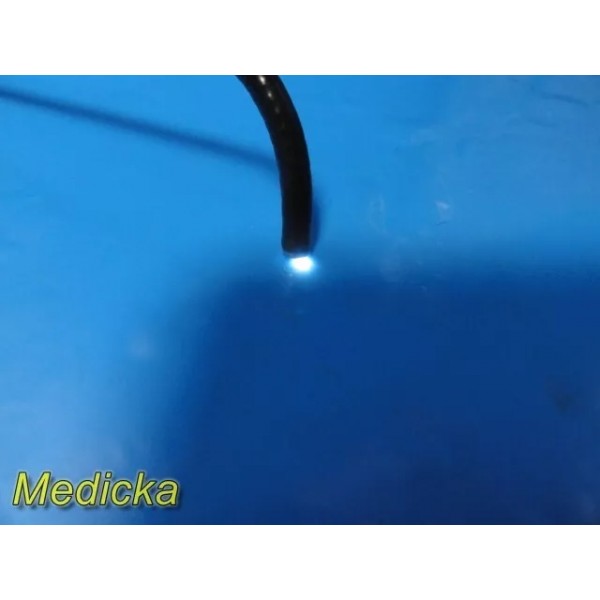

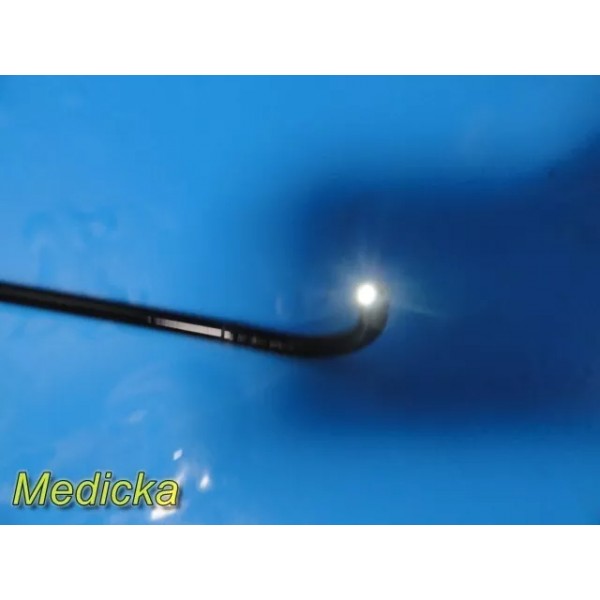

*Light transmission is smooth

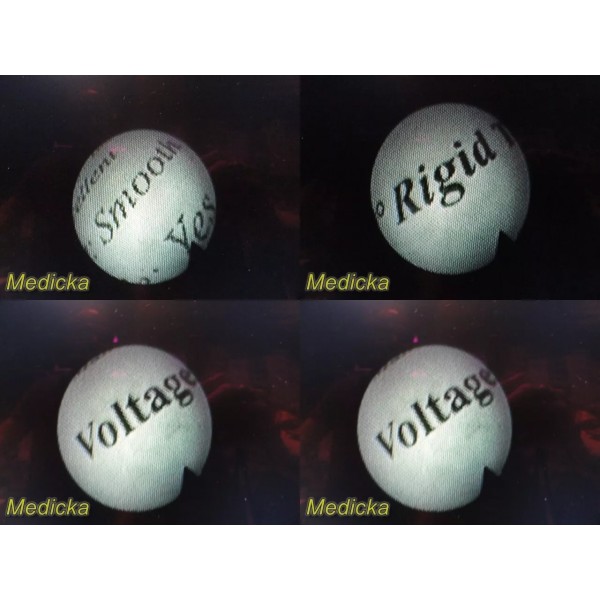

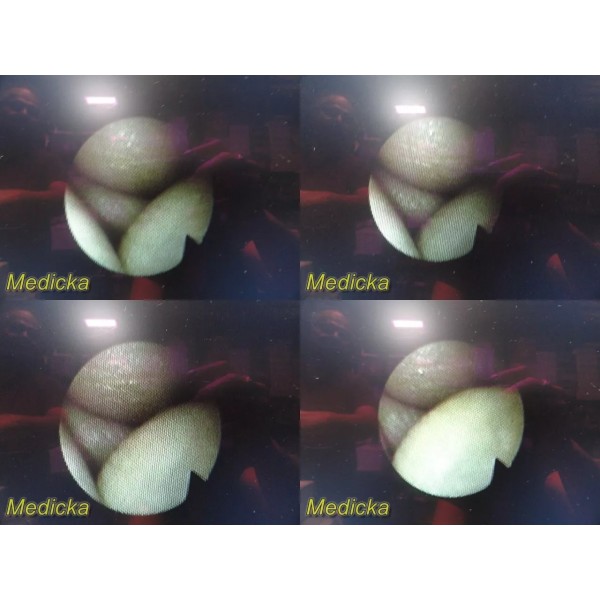

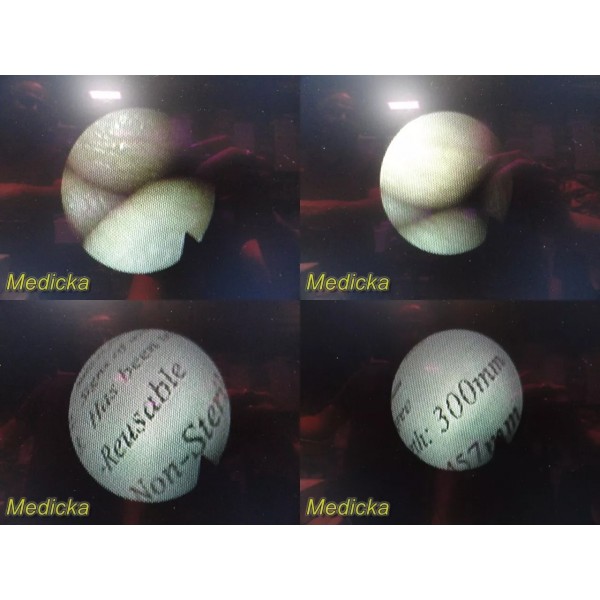

*Image seen with naked eye & via camera is great

*No broken fibers noted

*No scope leak testing or other testing done at our location

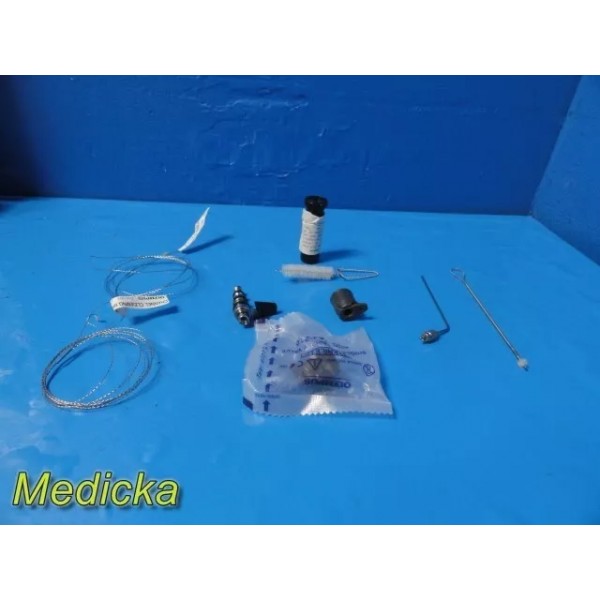

C. Accessories:

*2X Olympus BW-7B Cleaning brushes

*1X Olympus Lens cleaner

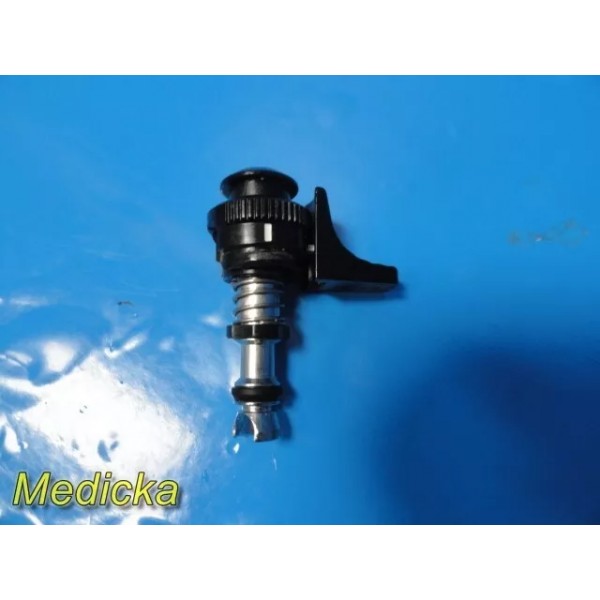

*2X Olympus Valves

*2X Olympus Brushes

*2X Olympus Biopsy Valve MAJ-210

*1X Olympus Stylet

*Please review images & check for compatibility before bidding for the item

     Know this device before you buy!!

      Olympus LF-2 Endoscope Fiberscope Features:

      -Compatible with single-lumen endotracheal tubes with an internal diameter of 5.0 mm or greater; double-lumen tubes 37 Fr. or greater

      -1.5 mm channel for easier aspiration/instillation of fluids

      -Olympus optical technology produces high-quality images for observation

      -Wider field of view (90°) for excellent visualization

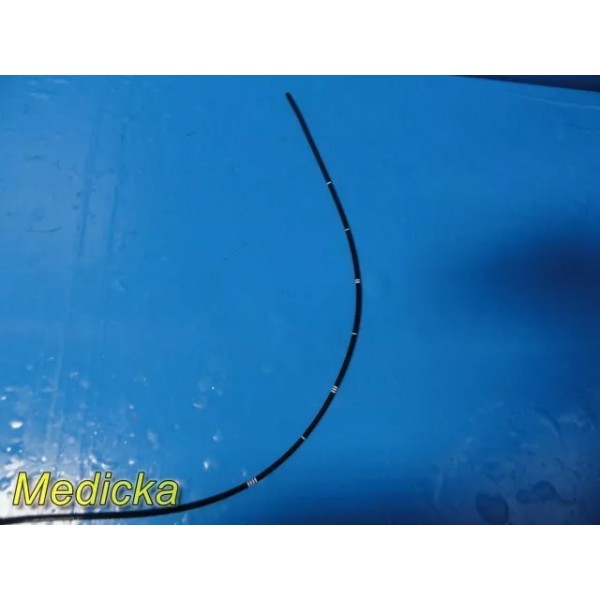

      -Insertion tube markers (bands) for quick determination of insertion 'depth

      -Waterproof for thorough reprocessing

       Olympus LF-2 Fiberscope Intubation Scope Specifications:

       -Optical System

       • Field of View: 90°

       • Direction of View: Forward

       • Depth of Field: 3 to 50 mm

       -Insertion Tube

       • Distal End Outer Diameter: 3.8 mm

       • Insertion Tube Outer Diameter: 4.0 mm

       • Working Length: 600 mm

       -Instrument Channel

       Inner Channel Diameter: 1.5 mm

       -Bending Section

       •Angulation Range: Up 120° | Down 120°

       -Total Length: 830 mm

    Package includes:-

Olympus LF-2 Fiberoptic Intubation Scope Endoscope Fiberscope

2X Olympus BW-7B Cleaning brushes

1X Olympus Lens cleaner

2X Olympus Valves

2X Olympus Brushes

2X Olympus Biopsy Valve MAJ-210

1X Olympus Stylet

Carrying Case

*Items shown in photos are the items that will ship.  If it is not shown in the photos, it is not included*

1. 6.        Sterilized : No
2. 7.        Manual : No
3. 8.        Cleaned : Yes
4. 9.        Shipping Weight : 15 lbs

Stock ID : 34408 (P.O 1200) (SC4)

Comments:

Kindly enlarge the images and see them with zooming.

Concern or query: Ask a Question

1. 1.    Overall Condition:- As seen in images  - Good
2. 2.    Physical Condition:  Please review images before bidding : Good
3. 3.    Working Condition:  Has been tested at our end & is in good functionality....will receive item as pictured ……………(offered AS IS)
4. 4.    “As a whole; the item has not been tested technically or professionally at our end- unable to test --- being sold STRICTLY AS IS! Biomed check is strongly recommended before clinical use!”
5. 5.    Completeness: (with everything seen in the pictures. Please look at all pictures and go through detail description before bidding.)
