BC Biomedical MAXISIM 2000 ...

Product details

Voltage: --

Short description...

1. 1.      Sale is for imaged items only.
2. 2.   Signs of careful use

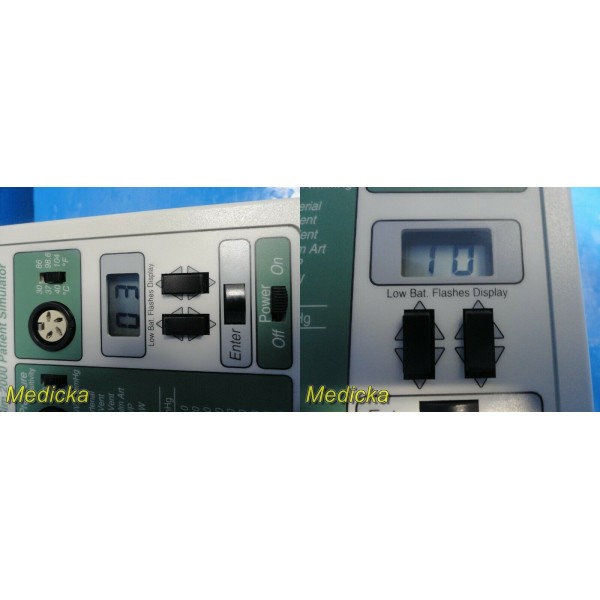

3. 3.   Has been tested at our end for Powers On only no detailed inspection could be carried out at our end

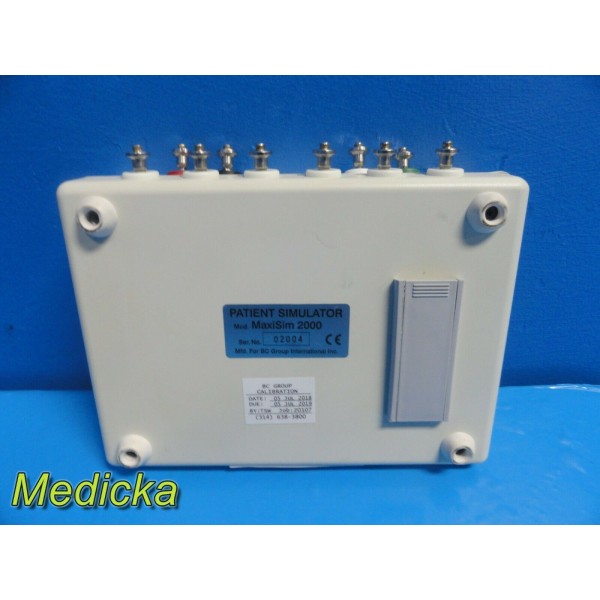

      *LAST CALIBRATED ON: 05-July-2018

      *CALIBRATION DUE: 05-JUL-2019

      *In very good shape overall with no signs of cracks, scuffs or scratches of any sort

      *Comes in its carrying case with its power adapter

Specifications: (Copied from vendor's website)

*ECG General

Lead Configuration: 12-lead simulation derived from one resistively

divided analog signal.

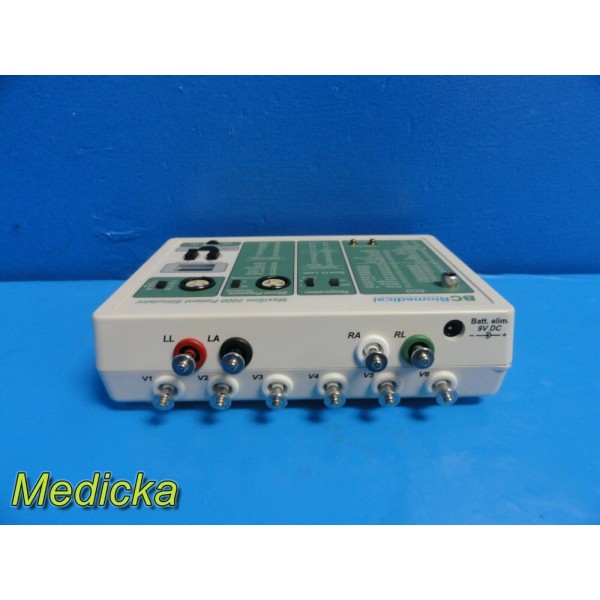

 RL, RA, LA, LL, V1-6

 Output Impedance

 Limb leads: 500 or 1000 ohms to RL

 V Leads: 1000 ohms to RL

 High Level Output: 0.5 V/mV of low level (Lead II)

Normal Sinus:

 Rates: 30, 60, 80, 120, 180, and 300 BPM

 Rate Accuracy: ± 1% of selection

 Amplitudes: 0.5mV, 1.0mV, 1.5mV and 2.0mV (Lead II)

 Amplitude Accuracy: ± 5%. (Lead II 1.0mV)

 Automatic ECG Rate Test

Manual ECG Performance Test:

 Square Wave: 2.0Hz 1.0 V p-p biphasic

 DC pulse: 4.0 sec. 1.0 mV

 Sine Waves: 0.1, 0.5, 10, 40, 50, 60 and 100 Hz

 Triangle Wave: 2.0 Hz

 Amplitude: 0.5mV, 1.0mV, 1.5mV and 2.0mV (Lead II)

 Amplitude Accuracy: ± 5%. (Lead II 1.0mV)

Automatic ECG Performance Test:

 Gain/Damping: 2 Hz square wave

 Frequency Response

 Low Frequency: 4 second DC pulse

 Band Pass: 10 Hz sine

 Monitor: -3dB point: 40 Hz sine

 Power Line Notch Filter: 50 Hz sine

 Linearity: 2 Hz triangle wave

Blood Pressure General

 Input/Output Impedance: 300 Ohms

 Exciter Voltage Range: 2 to 16 volts

 Exciter Frequency Range: DC to 4000 Hz

 Output Sensitivity: 5 or 40 µV/V/mmHg

 Accuracy: ± 1% full scale ± 1 mmHg

 Calibrated Rate: 80 BPM

    Package includes:-

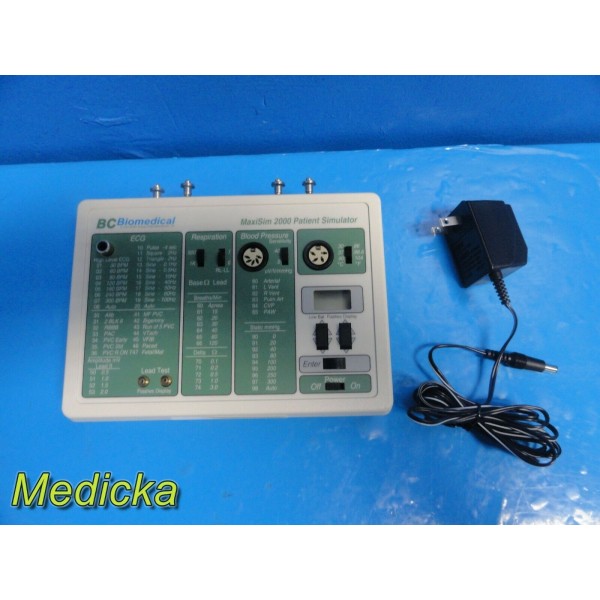

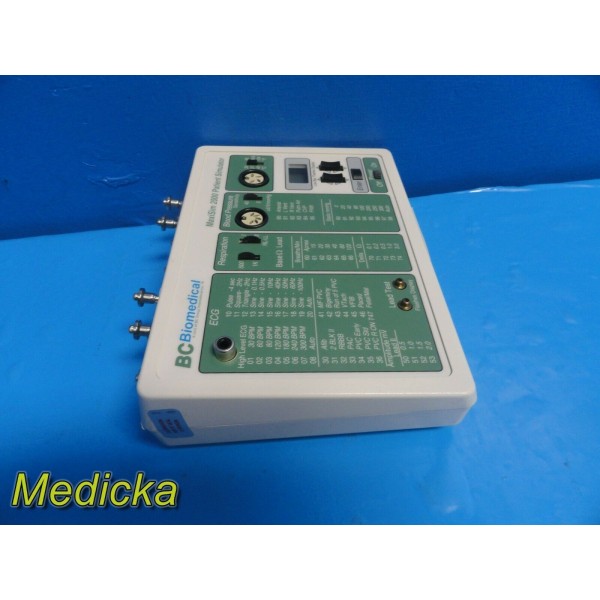

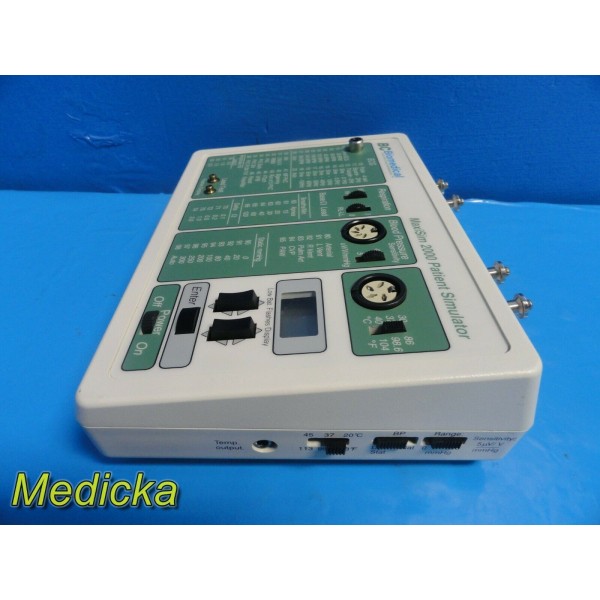

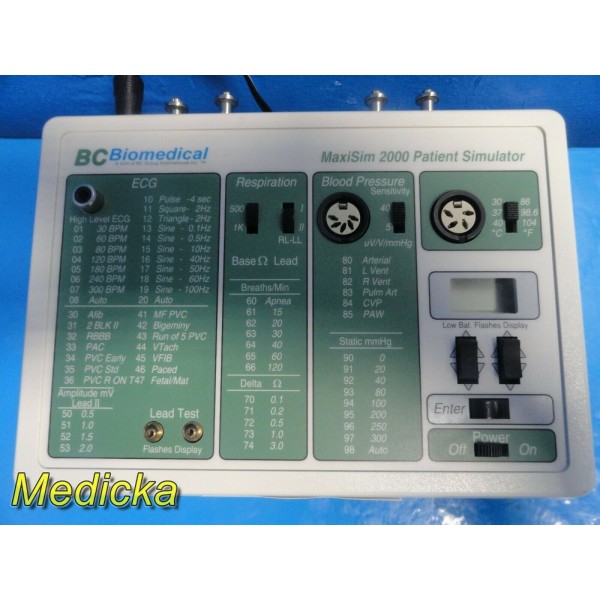

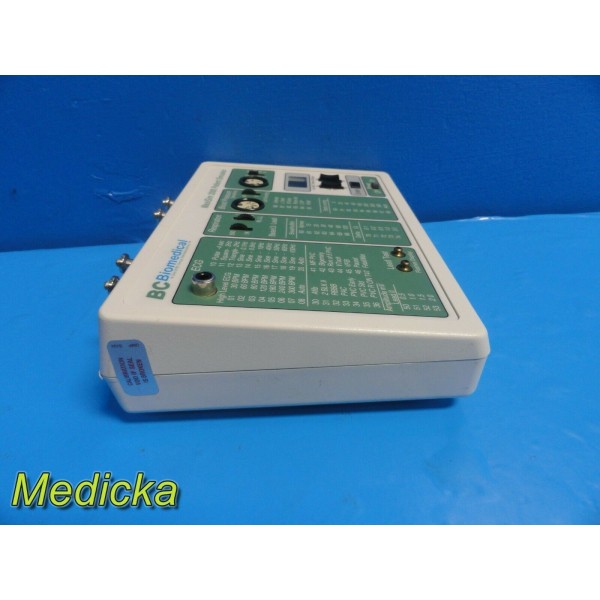

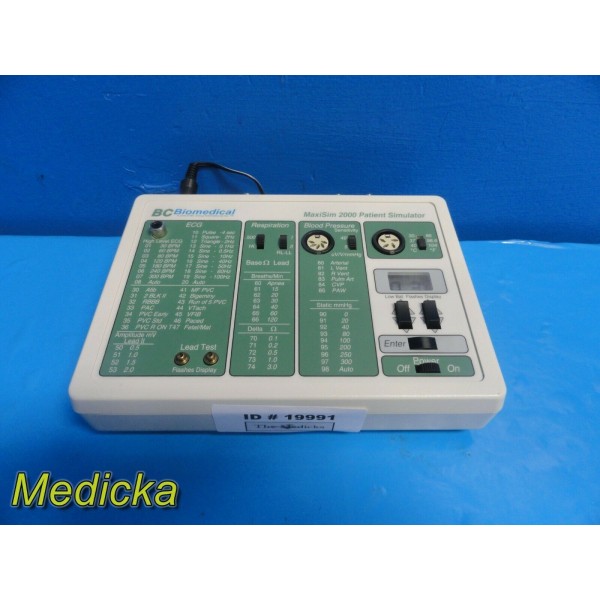

BC Biomedical MAXISIM 2000 Patient Simulator

MN# 212A2136 Power Adapter

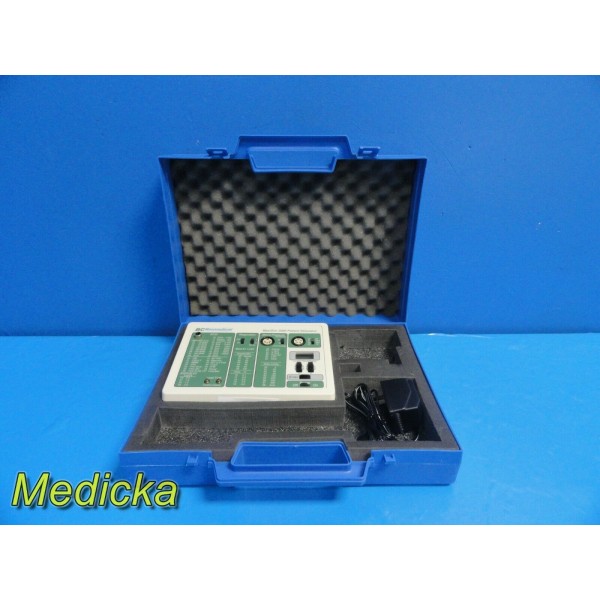

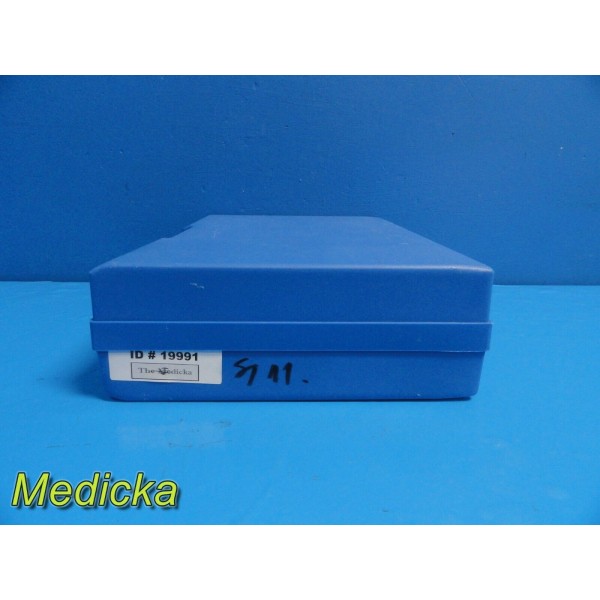

Carrying Case

*Items shown in photos are the items that will ship.  If it is not shown in the photos, it is not included*

1. 6.        Sterilized : No
2. 7.        Manual : No
3. 8.        Cleaned : Yes
4. 9.        Shipping Weight  : 20 lbs

Stock ID : 19991 (WH 666)

Comments:

Kindly enlarge the images and see them with zooming.

Concern or query: Ask a Question

1. 1.    Overall Condition:- As seen in images  - Very Good
2. 2.    Physical Condition:  Please review images before bidding : Very Good
3. 3.    Working Condition: Has been tested at our end for Powers On only no detailed inspection could be carried out at our end...will receive item as pictured ……………(offered AS IS)
4. 4.    “As a whole; the item has not been tested technically or professionally at our end- unable to test --- being sold STRICTLY AS IS! Biomed check is strongly recommended before clinical use!”
5. 5.    Completeness: (with everything seen in the pictures. Please look at all pictures and go through detail description before bidding.)
6. 6.    Caution for Buyers:

DESPITE WHAT MAY BE WRITTEN IN THIS LISTING ALL ITEMS ARE SOLD 'AS IS' & 'WHERE IS' AND UNLESS THE SELLER HAS INDICATED OTHERWISE, THERE WILL BE NO REFUND.

Please make sure you are ready to buy if you decide to place a bid.

Available Documentation (manual etc.): nil

Accessories: Comes with everything you see in pictures nothing more nothing less.
