Stryker Ref 0620-040-600 Pn...

Product details

Voltage:                  100-240V | 50-60Hz

Short description...

1. 1.      Sale is for imaged items only.
2. 2.   Display signs of some usage.

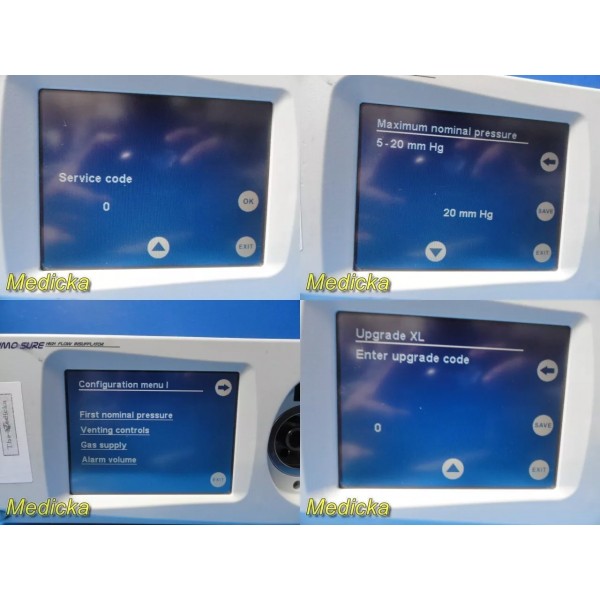

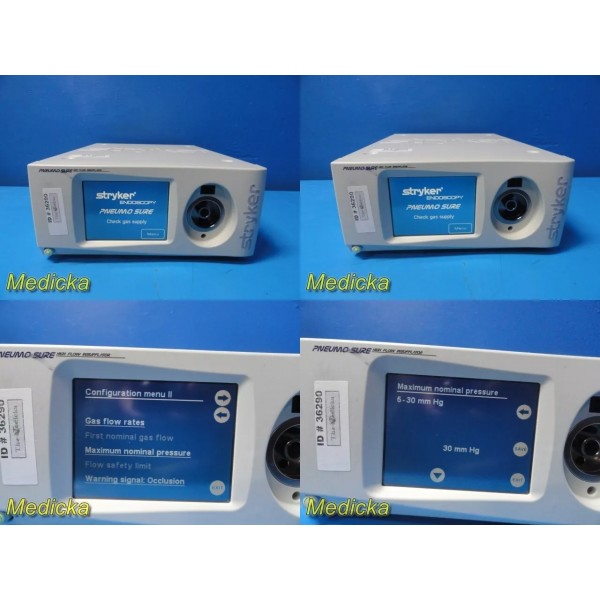

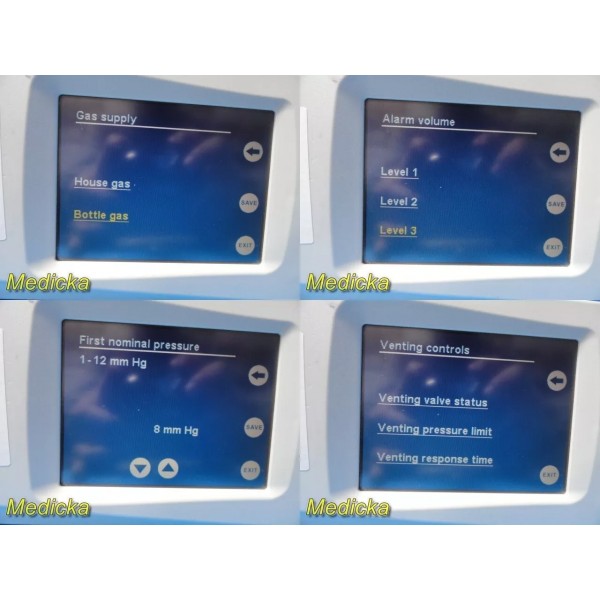

3. 3.   Has been tested at our end and functionality has been shown in the image section.

  *CE# 0197

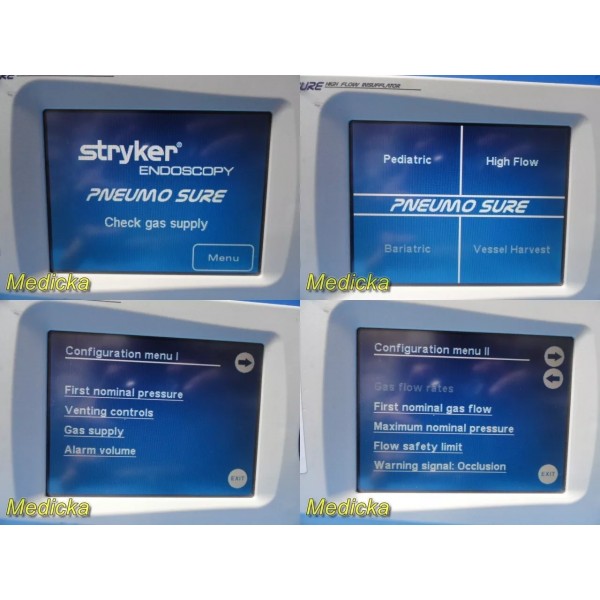

  *Device is set for high flow & pediatrics settings (Prominent compared to bariatric & vessel harvest settings are not active)

  *Cat# 620-040-610 has all 4 settings of high flow, pediatrics, bariatrics & vessel harvest

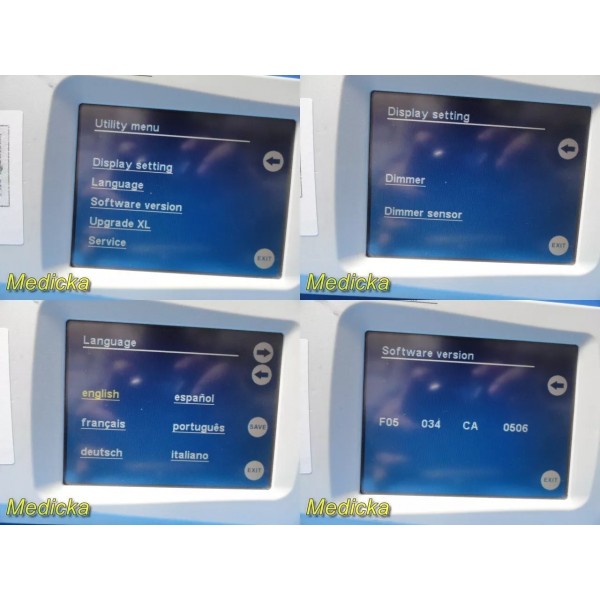

  *Multi language supported

  *Software: F05034 CA 5006

  *Device may have a few scratches on it due to previous usage

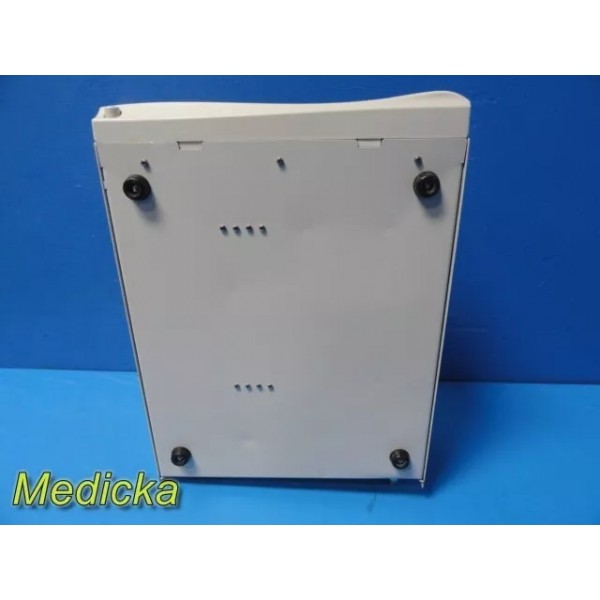

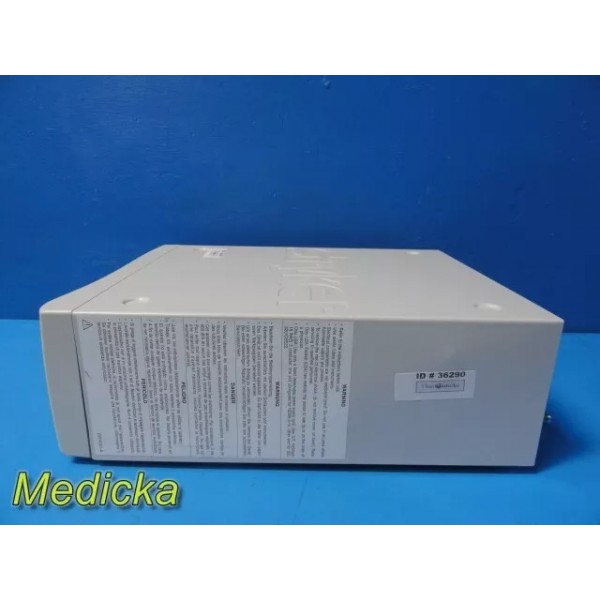

  *Some minor dent noted at the bottom; see images

  *Feet are intact

  *LCD is touchscreen & is fully responsive

  *No disposables or tubings included; No CO2 yoke included

  *Max CO2 P(max)=80 Bar (1160 PSI) max output pressure 75mm Hg max gas flow rate=45L/min

  *Please review images & check for compatibility before bidding for the item

Know thise device before you buy!!!

Key Features:

High Flow Capacity: Delivers up to 45 liters per minute, ensuring rapid insufflation.

Multiple Operating Modes: Equipped with modes tailored for pediatric, bariatric, high-flow, and vessel harvesting, procedures. 0620-040-600 has Active pediatric & High Flow settings. While 620-040-610 has active all 4 settings.

Integrated Heating Options: Offers integrated heating to maintain optimal gas temperatures during procedures.

Touchscreen Interface: Features a user-friendly touchscreen for easy navigation and control.

Compact Design: Dimensions are approximately 12.2 inches (W) x 18.7 inches (D) x 5.82 inches (H), facilitating easy integration into operating rooms.

Required Components for Operation:

CO2, Supply Connection: Depending on the facility's setup, the insufflator can be connected to either a CO2, tank or a house gas system.

  -For CO2: Tank Connection: CO2. Tank Hose, CO2, Tank Yoke

  -For House Gas Connection: DISS House Gas Connector, DISS House Gas Hose

Disposable Tubing Sets: Specific tubing sets are required for different insufflation needs:

  -PneumoSure High Flow Tubing. PneumoSure Heated Tubing, High Flow Heated Insufflator Tubing

Veress Needle: Utilizeed for initial insufflation to establish pneumoperitoneum.

CO2 Switiching Valve: Facilitates the transition between different CO2 sources if needed.

    Package includes:-

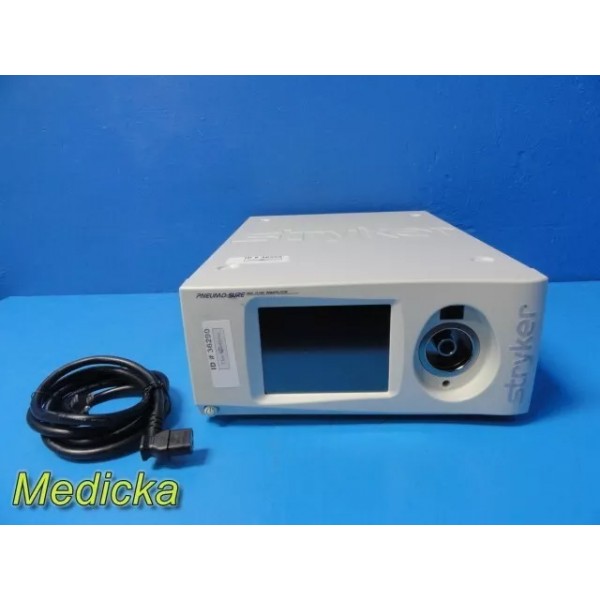

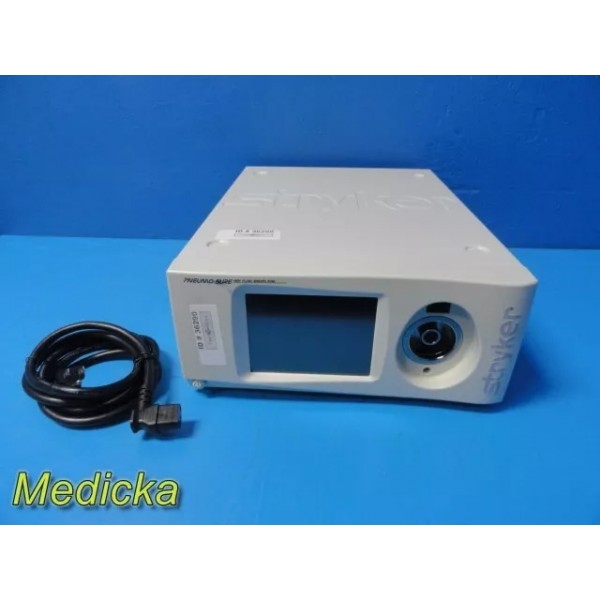

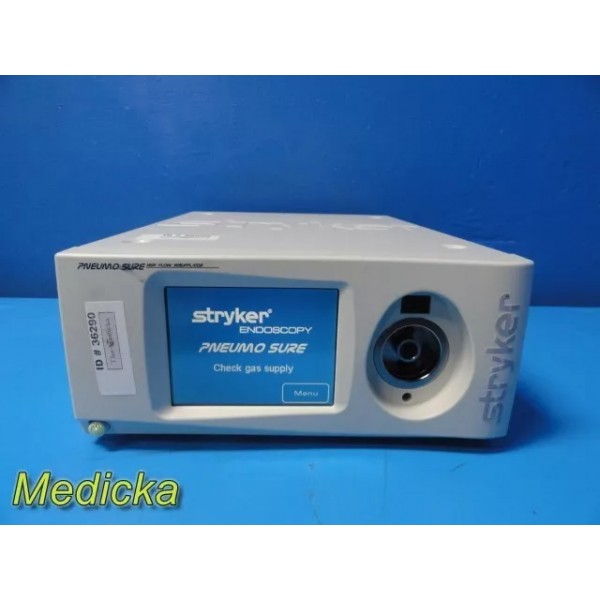

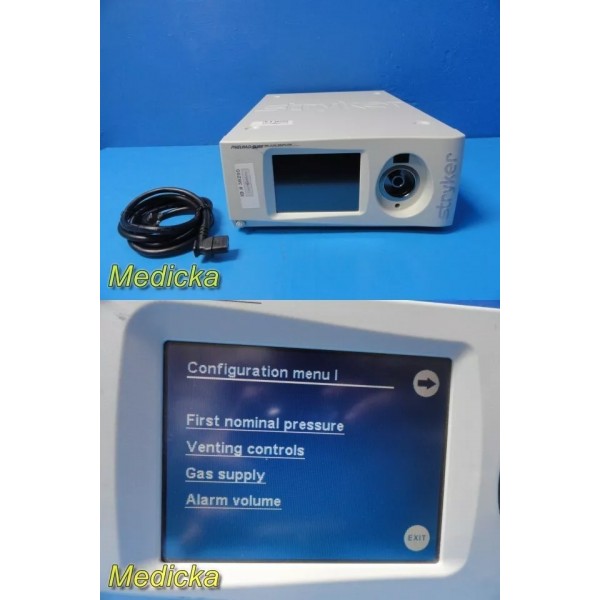

Stryker Ref 0620-040-600 Pneumo Sure XL High-Flow Insufflator

Power Cord

*Items shown in photos are the items that will ship.  If it is not shown in the photos, it is not included*

1. 6.        Sterilized : Non-sterile device
2. 7.        Manual : Not included
3. 8.        Cleaned : Yes, at our facility
4. 9.        Shipping Weight  : 30 lbs

Stock ID : 36290 (P.O 1200) (WH77 SC0)

Comments:

Kindly enlarge the images and see them with zooming.

Concern or query: Ask a Question

1. 1.    Overall Condition:- As seen in images - Very Good
2. 2.    Physical Condition:  Please review images before bidding - Good
3. 3.    Working Condition: Has been tested at our end and functionality has been shown in the image section...Willreceive item as pictured ……………(offered AS IS)
4. 4.    “As a whole; the item has not been tested technically or professionally at our end- unable to test --- being sold STRICTLY AS IS! Biomed check is strongly recommended before clinical use!”
5. 5.    Completeness: (with everything seen in the pictures. Please look at all pictures and go through detail description before bidding.)
