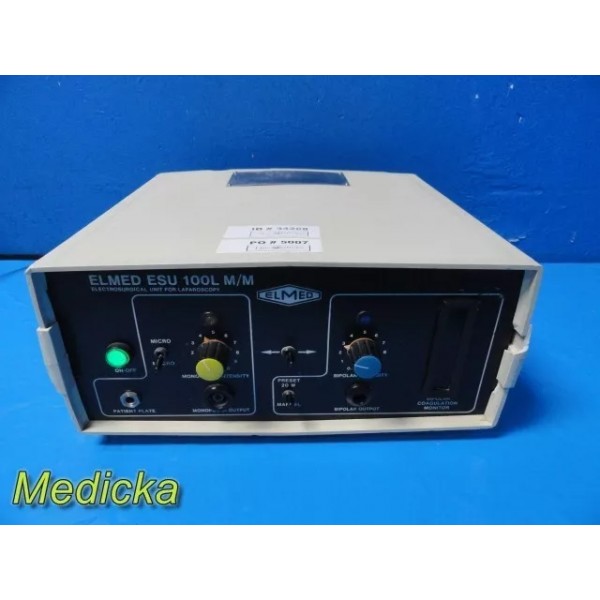

ELMED ESU 100L M/M Laparosc...

Product details

Voltage:                  117V; 50-60Hz; 300VA

Short description...

1. 1.      Sale is for imaged items only.
2. 2.   PARTS ONLY.
3. 3.   Has been tested at our end for Powers On, no detailed inspection could be performed at our end.

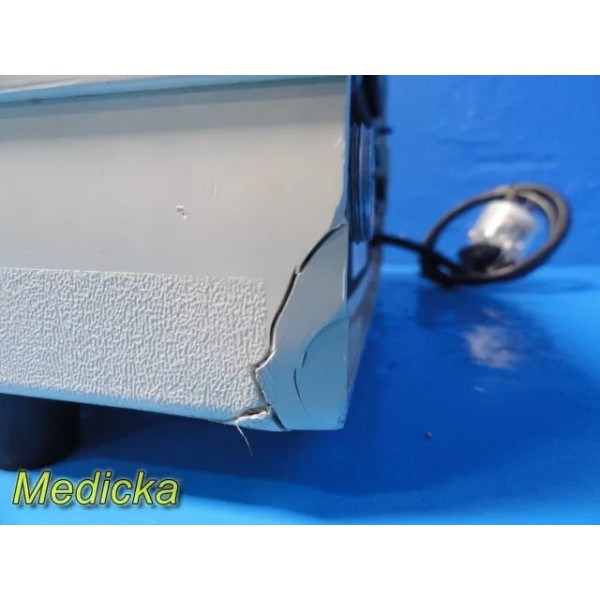

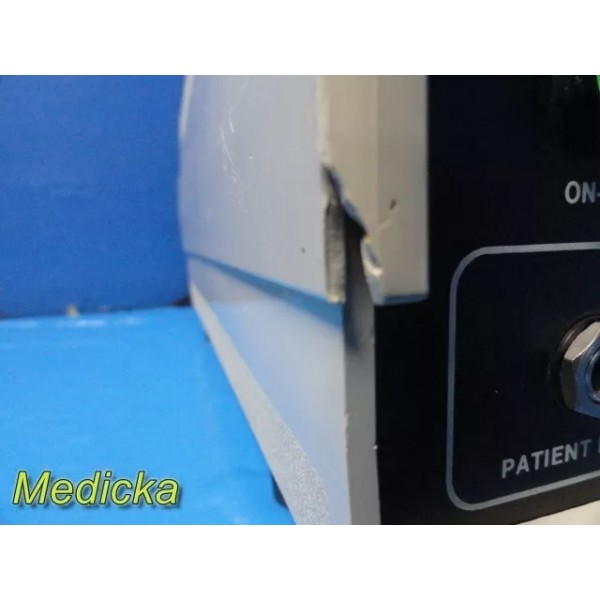

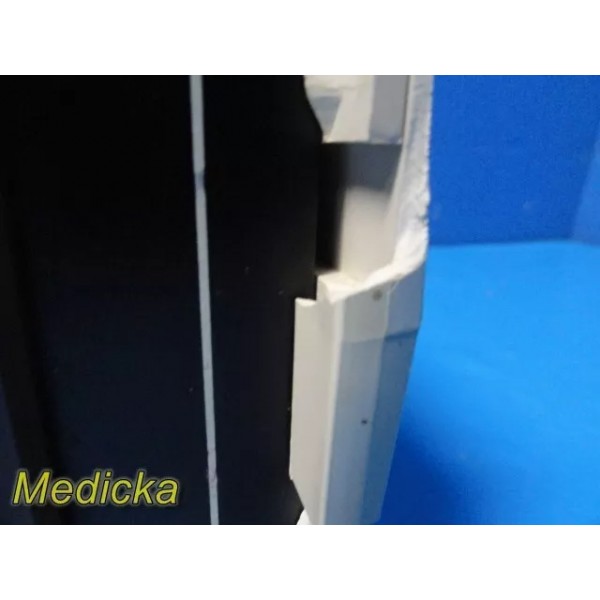

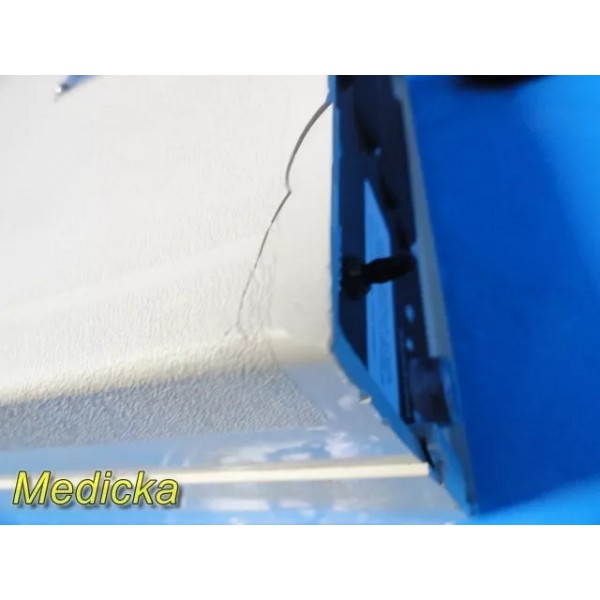

*Unit has cracks at back & chipped

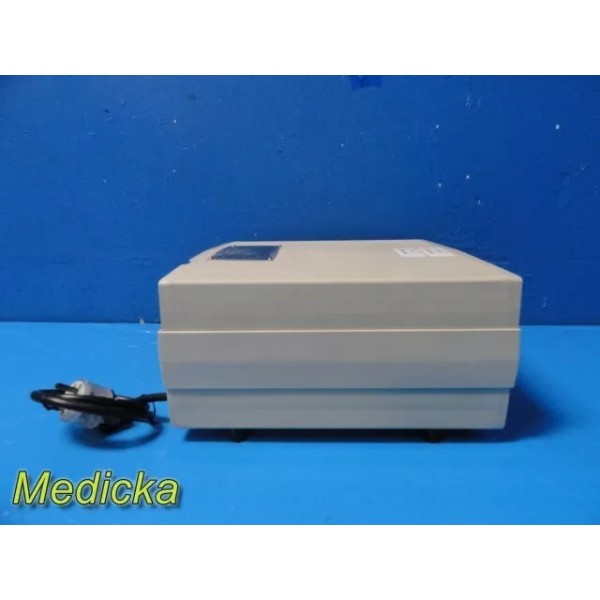

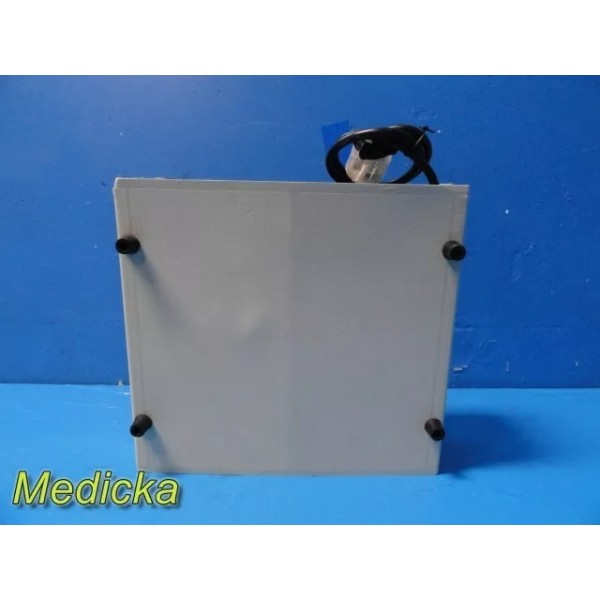

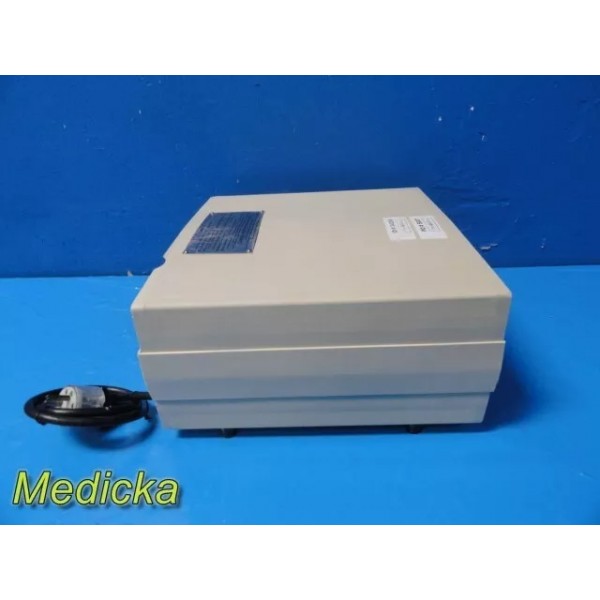

*See images for cosmetics

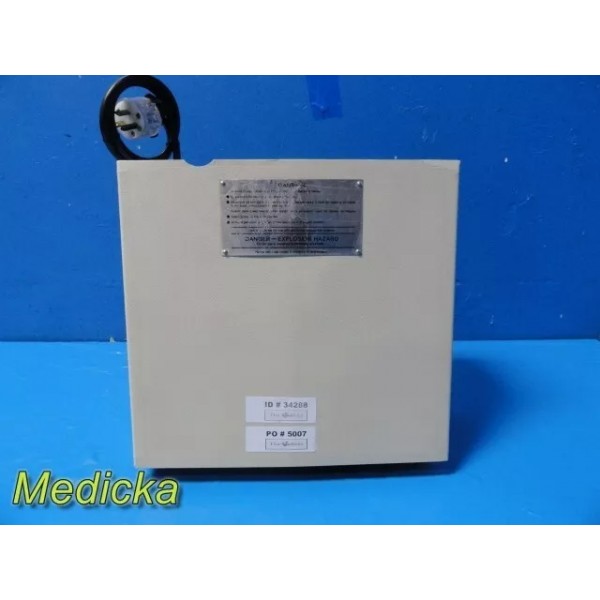

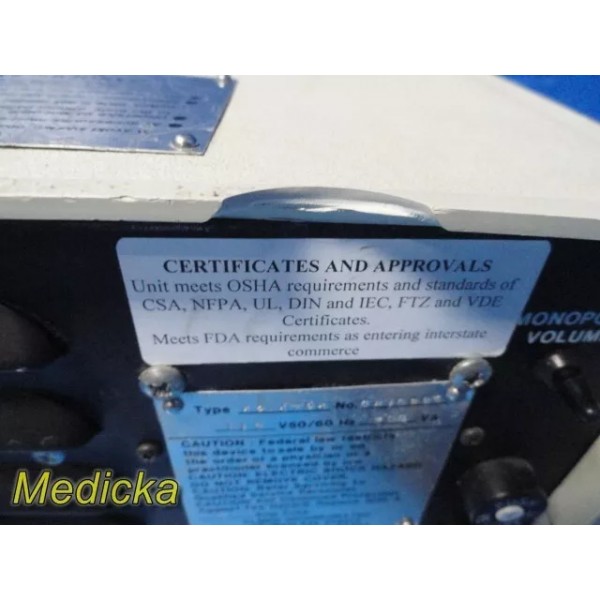

*Read all cautions mentioned on the device

*NOT LABELLED AS PATIENT READY

*Operating frequency 500kHz

*Monopolar Output 300Ohm

*Load macro 100 / micro 35 watt

*Bipolar Output 100Ohm load

*Manual 50 / Reset 20 watt

*Has integrated power cord

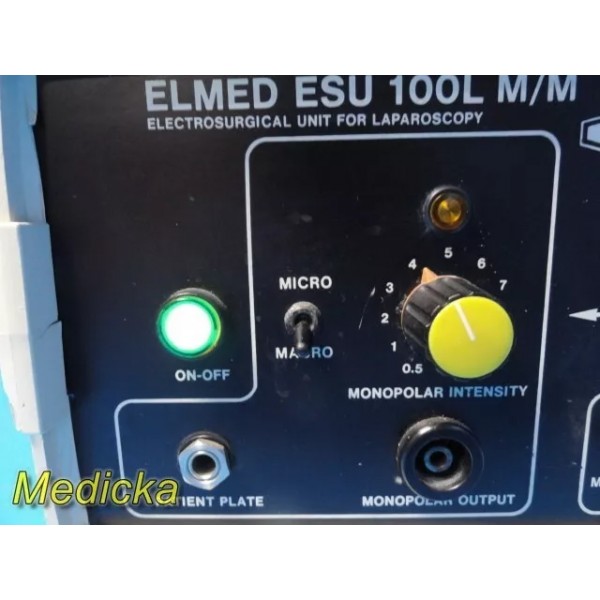

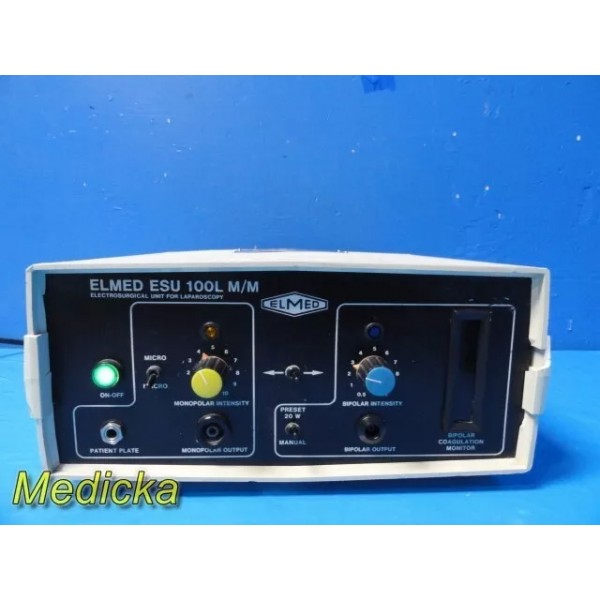

*All knobs and toggles are intact

*No foot control or ESU adapter included

*No disposables or consumables with device

*No manual included

*NO RETURN, REFUND OR EXCHANGE OPTION

Know this device before you buy!

[1] Three RF-solid state circuits. One for unipolar cutting and coagulation in the MICRO or MACRO modes, one for bipolar coagulation, and one for BI-POL CUTTING ESU 100 E M/M-B only).

[2] Accepts all laparoscopic or pelviscopic electrosurgical instruments.

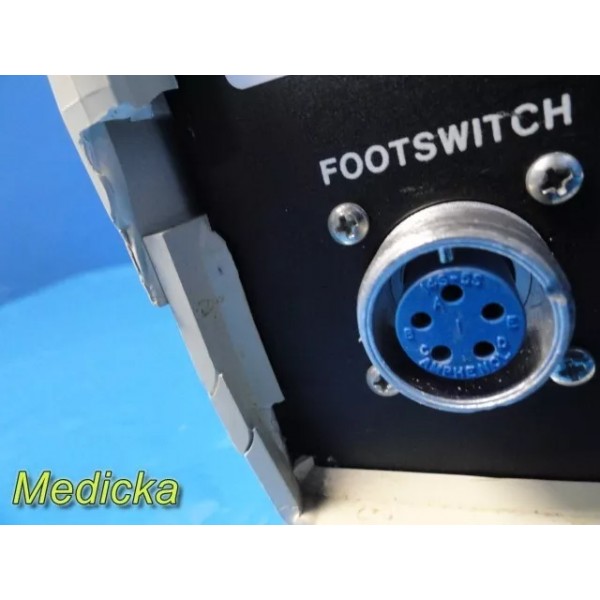

[3] Single pedal footswitch operated, with low voltage switching circuit.

[4] Patient safety circuit. Automatic, low voltage sentry, alarms and deactivates the unipolar output in case of a defect in the connections for the patient plate circuit. Optionally, our Return Electrode Monitor System is available, which also will alarm and deactivate the unipolar output in case of poor patient plate contact.

[5] Change-over switch for unipolar or bipolar operation, defeats the patient plate alarm in the bipolar mode.

[6] Visual and audible RF-indicators.

[7] L.E.D. Bar-graph meter for unipolar wattage.

[8] Low voltage bipolar generator provides reliable coagulation with all available bipolar forceps for laparoscopy, pelviscopy and microsurgery.

[9] Musical coagulation monitor for the bipolar mode provides both audible and visual indication of the degree of tissue coagulation, particularly for bipolar tubal sterilization (Not available on the 100 L).

[10] SMART-O-MATIC, automatic compensation circuit provides the desired output for all electrodes or tissue conditions. The automatic range control, which is divided into ten steps, requires no readjustment within the set range. The SMART-O-MATIC operates in both the unipolar and bipolar modes.

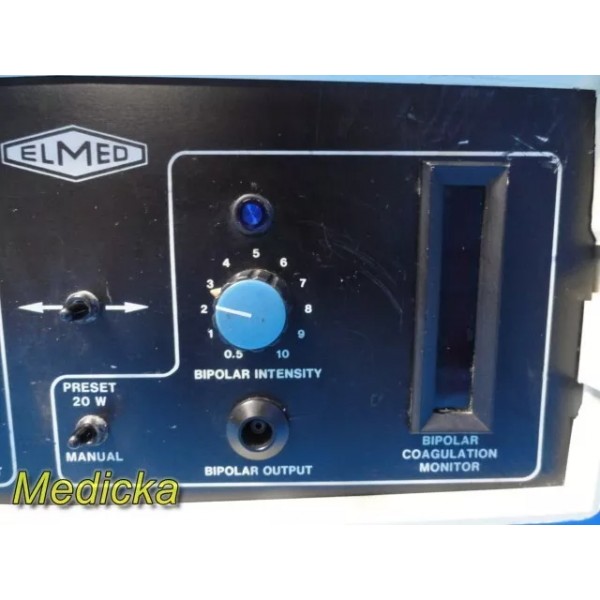

[11] Output intensity may be precisely regulated within the full range of the dial setting. However, investigations have demonstrated 20 W at 100 Ohms achieves optimal results, therefore, we have incorporated a preset selection and 20 W range preselect switch (Not available on 100 L).

 [12] All of these ELMED 100 series Electrosurgical Units are designed as table top units. A specially designed cart (List No. 52-5067) is available for these described units and other endoscopic equipment.

Package includes:-

ELMED ESU 100L M/M Laparoscopy Electrosurgical Unit (ESU)

*Items shown in photos are the items that will ship.  If it is not shown in the photos, it is not included*

1. 6.        Sterilized : No
2. 7.        Manual : No
3. 8.        Cleaned : Yes
4. 9.        Shipping Weight : 30 lbs

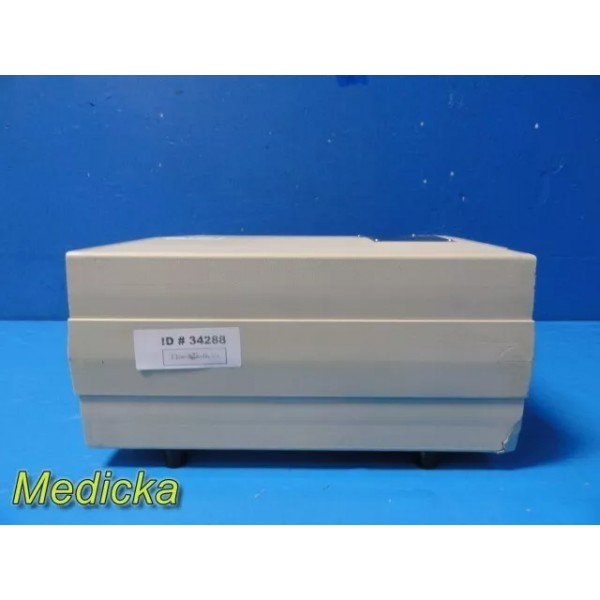

Stock ID: 34288 (P.O 5007) (WH 555)

Comments:

Kindly enlarge the images and see them with zooming.

Concern or query: Ask a Question

1. 1.    Overall Condition:- As seen in images - Parts Only
2. 2.    Physical Condition:  Please review images before bidding : Fair
3. 3.    Working Condition: Listed for parts only as functionality is unknown to us...Will receive item as pictured ……………(offered AS IS)
4. 4.    “As a whole; the item has not been tested technically or professionally at our end- unable to test --- being sold STRICTLY AS IS! Biomed check is strongly recommended before clinical use!”
5. 5.    Completeness: (with everything seen in the pictures. Please look at all pictures and go through detail description before bidding.)
