2008 Natus 1002 Xltek Neuro...

Product details

Voltage:                  120V | 50-60Hz | 1.4A

Short description...

1. 1.      Sale is for imaged items only.
2. 2.   Signs of average use.
3. 3.  Has been tested at our end & is in good functionality.

   *Reusable & non-sterile device

A. Rear panel connectors are for Head box, stim, trigger, A/V stim, USB & LAN along with foot pedal

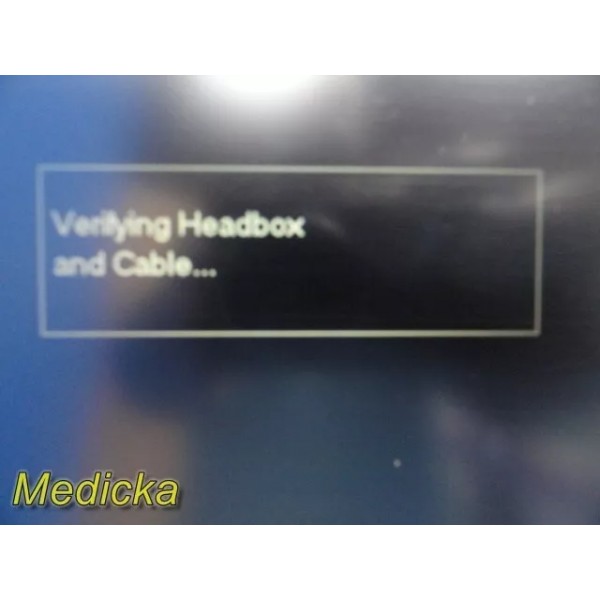

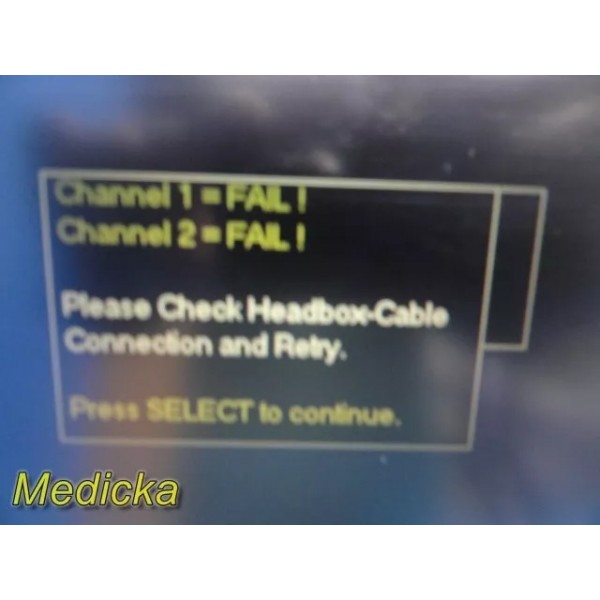

B. Testing: Turns on > Selftest > Connect Head Box/Cable > Ch 1/Ch 2 Fail (No head box, stim or accessories connected)

   *No PM info available

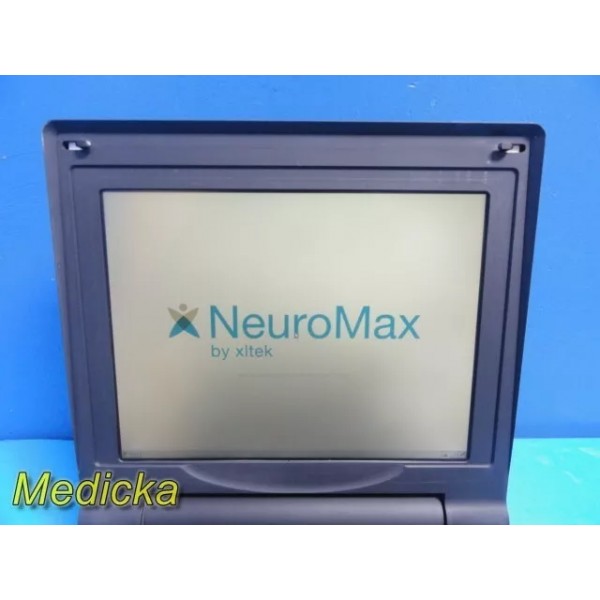

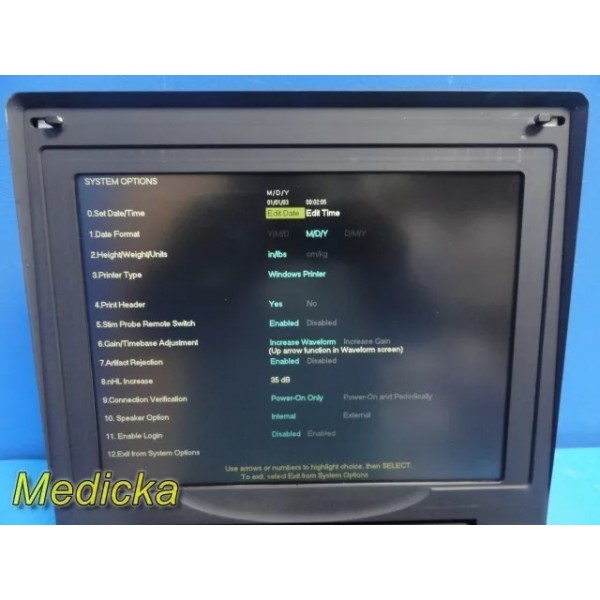

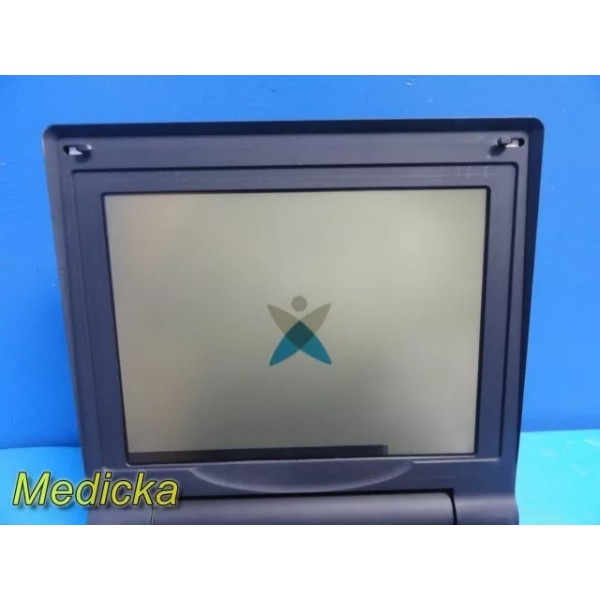

   *LCD is bright, may have dirt spots at system side

   *No dents or crcaks noted

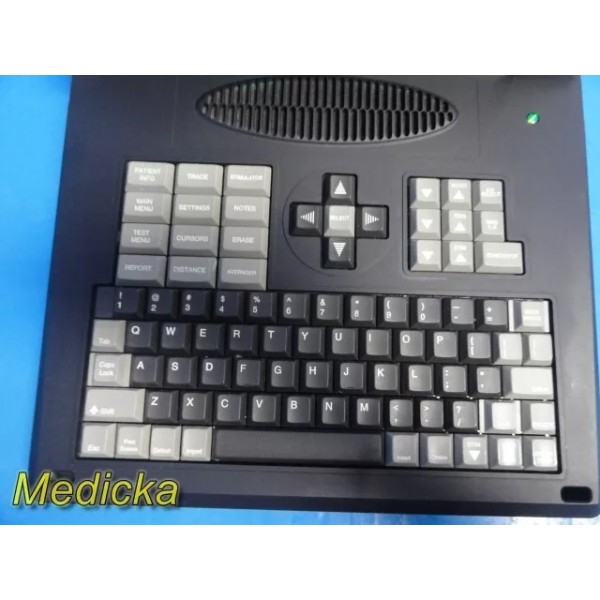

   *All buttons are intact & responsive

   *May have scratches & scuffs

   *Comes with power cord

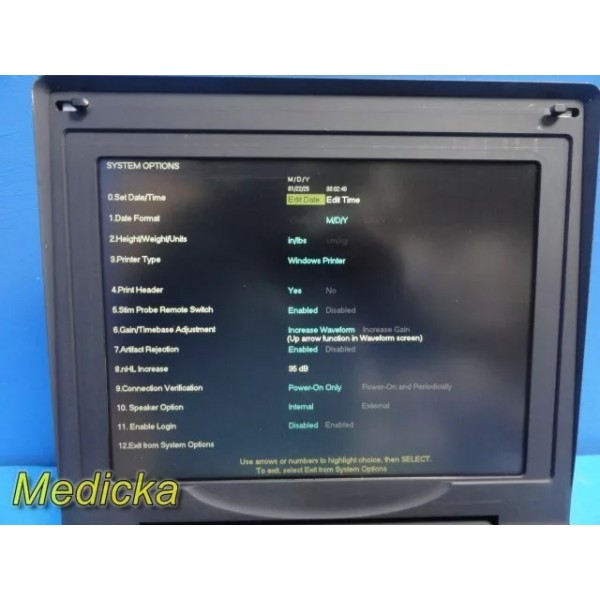

   *Date is correct adjust time as per time zone

1. C. The Natus Xltek NeuroMax 1002 is a portable and user-friendly electromyography (EMG) and nerve conduction study (NCS) system designed for clinical neurophysiology diagnostics. This device provides accurate and reliable results for evaluating the integrity and functionality of nerves and muscles.

D. Components Required to Complete the Unit (Not Included):

• Surface Electrodes/Needle Electrodes
• Head Box & Stimulators
• Patient Cables
• Accessories: Disposable electrode pads, adhesive gel, electrode cleaners, etc.
• Headphones
• Pneumatic Footswitch
• Printer
• Carrying Case
• User Manual
• Rolling Stand

1. E. Xltek NeuroMax 1002 EMG Specifications:

     -Dimensions: 4" (H) x 13" (W) x 13" (D)

     -Weight: 11.4 lb (5.2 kg)

     -Materials: Injection moulded PC ABS chassis

     -External Connectors: Headbox, Headphones, Printer, Footswitch (pneumatic)

     -Channels: 2

     -Sampling Rate: 60 kHz

     -Display:

      *Size and Type: 12.1" active matrix color LCD screen

      *Resolution: 1024 x 768

     -Electrical:

      *Maximum Rated Input Power: 92 VA

      *Heat Loss: 92 Watts

      *Maximum Supply Current Tolerance: +/- 10% for either 50 Hz or 60 Hz transformer*

      *Electrical Supply Frequency Tolerance: +/- 10% for either 50 Hz or 60 Hz transformer*

      *Insulation Class and Type: Class 1, Type BF

      *Power Input Voltage, Frequency, and Rated Current: 120 VAC, 60 Hz, 1 A 230 VAC, 50 Hz, 0.4 A

      *Mains Connection: Protectively grounded detachable power supply cord

      *CMRR: ~105 dB

      *Noise: ~2.9 nV / ÔêÜHz

   *Please review images & check for compatibility before bidding for the item

    Package includes:-

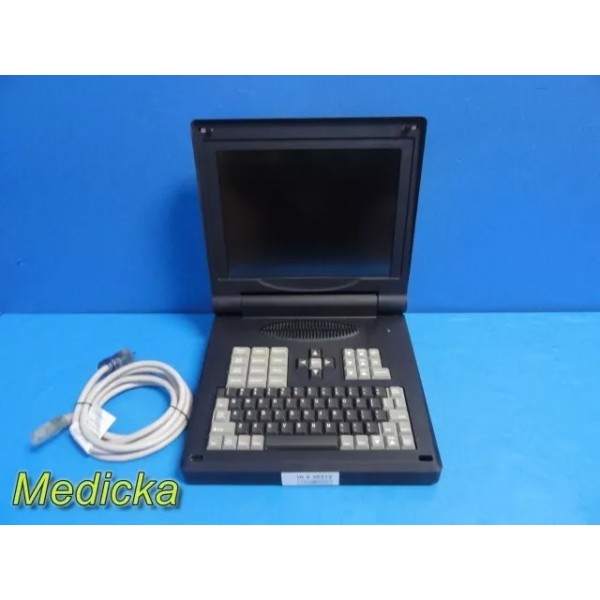

2008 Natus 1002 Xltek NeuroMax NCS/EMG System Console

Power Cord

*Items shown in photos are the items that will ship.  If it is not shown in the photos, it is not included*

1. 6.        Sterilized : No
2. 7.        Manual : No
3. 8.        Cleaned : Yes
4. 9.        Shipping Weight  : 30 lbs

Stock ID : 36212 (P.O 2016) (R2 C2)

Comments:

Kindly enlarge the images and see them with zooming.

Concern or query: Ask a Question

1. 1.    Overall Condition: As seen in images - Very Good
2. 2.    Physical Condition: Please review images before bidding : Very Good
3. 3.    Working Condition: Has been tested at our end & is in good functionality.....Will receive item as pictured ……………(Offered AS IS)
4. 4.    “As a whole; the item has not been tested technically or professionally at our end- unable to test --- being sold STRICTLY AS IS! Biomed check is strongly recommended before clinical use!”
5. 5.    Completeness: (with everything seen in the pictures. Please look at all pictures and go through detail description before bidding.)
