Product details

Voltage : 12 VDc, 300 mA

Short description……………….

1. 1.        Sale is for imaged item only

02 units are available with exactly same consition !

1. 2.        Package includes:

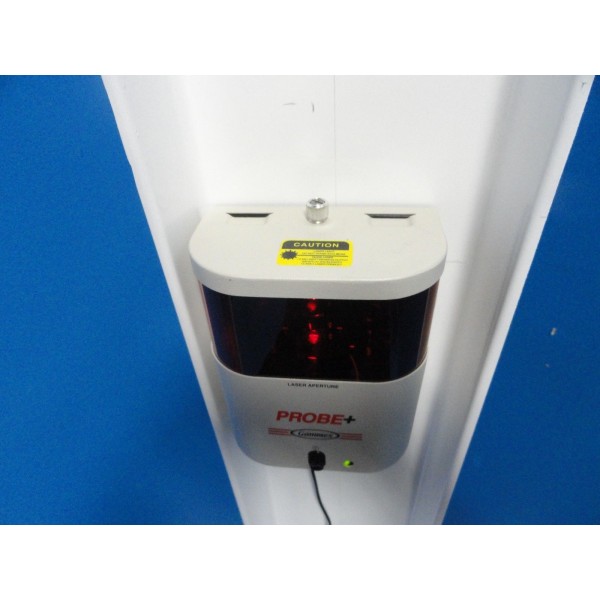

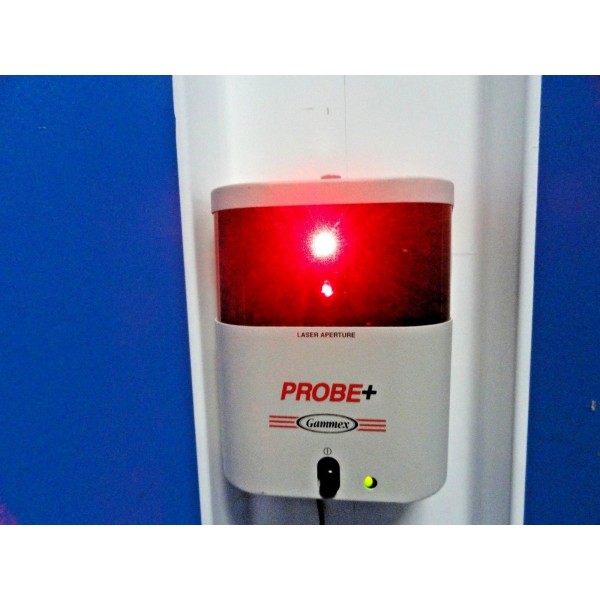

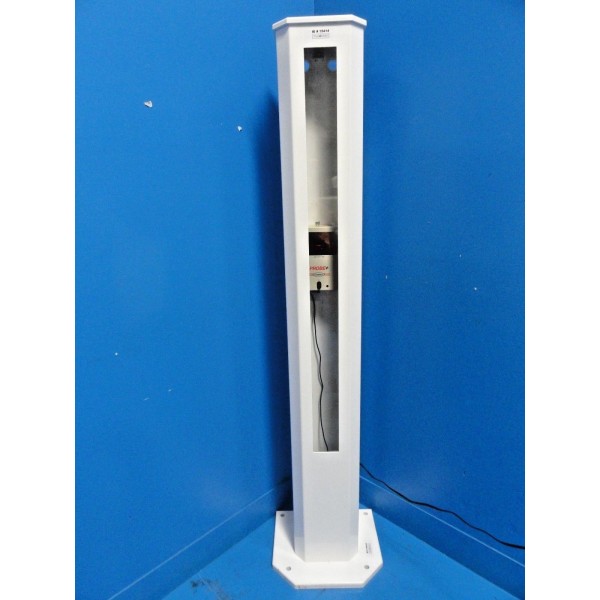

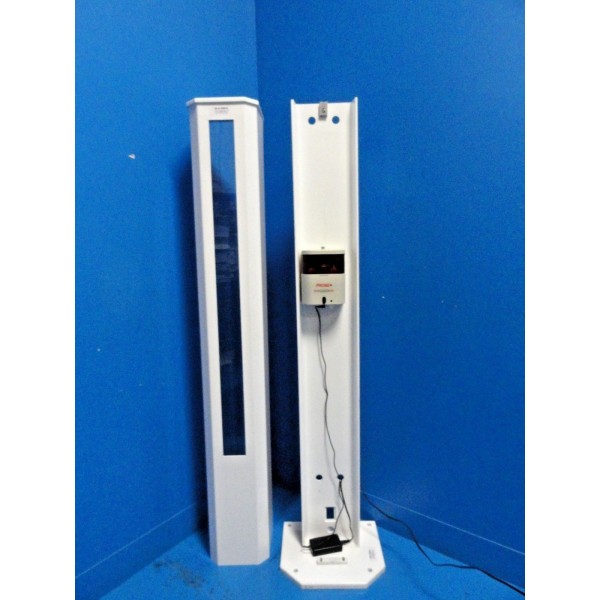

1 x GLD 450 Crosshair  Probe+ Diode Laser

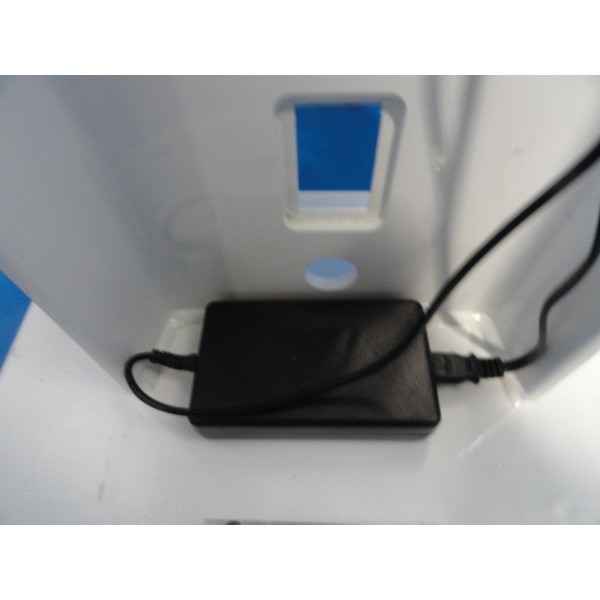

1 x Power cord

1 x Case

1. Sterilize : No
2. Manual : No

http://jrtassociates.com/pdfs/probe_plus.pdf

1. Cleaned : Yes
2. Shipping Weight  : 75 Pounds

Stock ID : 15414 / WH

SPeCiFiCatioNS

Laser Beam output

Power . . . . . . . . 0.5 mw (each beam)

range . . . . . . . . Up to 6.0 m

Line width . . . . . <0.5 mm @ 2 m

Line Divergence

(Length). . . . . . . 15-17°

Drift . . . . . . . . . No measurable drift

waveLength . . . . 6350 Å (635 nm) visible red

Visibility . . . . . . clearly visible in strong

ambient light

Laser Beam adjustment

Horizontal range

of Vertical

Projection . . . . . 330.2 cm @ 3.05 m

Vertical range

of Horizontal

Projection . . . . . Plus 100 cm /minus 300 cm @ 3 m

Line angle

adjustment

range . . . . . . . . ±180 degrees

Mounting . . . . . . Turret adjustable to ±80°

Laser Dimensions

Length . . . . . . . . 17.3 cm (6.75 in)

width . . . . . . . . 14.0 cm (5.5 in)

Depth . . . . . . . . 8.0 cm (3 in)

weight. . . . . . . . 1.8 kg (4 lbs)

Power

requirements . . . 12 VDc, 300 mA

Universal Power Supply

Power

requirements . . . 110 VAc – 220 VAc, 50 – 60 Hz, 0.4 A

Laser unit includes various adapters for U.s.

and international use.

Comments:

Kindly enlarge the images and see them with zooming.

Concern or query: Ask a Question

1. 1.    Overall Condition:- As seen in images  - Very Good
2. 2.    Physical Condition:  Please review images before bidding : Good

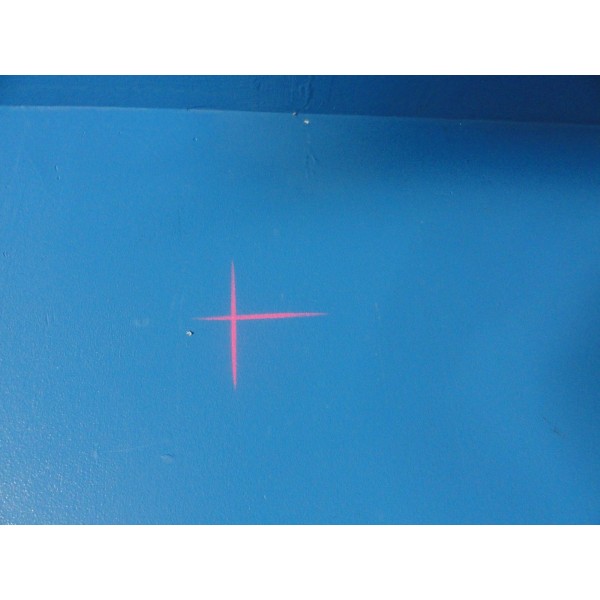

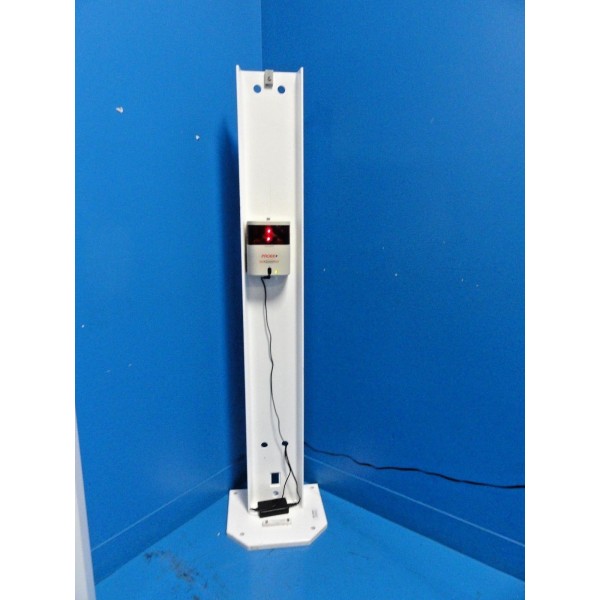

3. 3.    Working Condition: Powers on, Red light is emitting out .....Seems to be working well ………….will receive item as pictured ……………(offered AS IS)
4. 4.    “As a whole; the item has not been tested technically or professionally at our end- unable to test --- being sold STRICTLY AS IS! Biomed check is strongly recommended before clinical use!”
5. 5.    Completeness: (with everything seen in the pictures. Please look at all pictures and go through detail description before bidding.)
6. 6.    Caution for Buyers:

DESPITE WHAT MAY BE WRITTEN IN THIS LISTING ALL ITEMS ARE SOLD 'AS IS' & 'WHERE IS' AND UNLESS THE SELLER HAS INDICATED OTHERWISE, THERE WILL BE NO REFUND.

Please make sure you are ready to buy if you decide to place a bid.

Available Documentation (manual etc.): nil

Accessories: Comes with everything you see in pictures nothing more nothing less.
