Product details

Short description……………….

Gaymar Alternating Pressure Relief Systems are designed for the prevention and treatment of pressure ulcers. Pressure relief is obtained by alternating the patient support areas of the Gaymar pad. By bridging the tissue, pressure relief

is achieved between the inflated cells and “bottoming out” is avoided. Capillary blood flow is permitted and damaging tissue pressures are avoided.

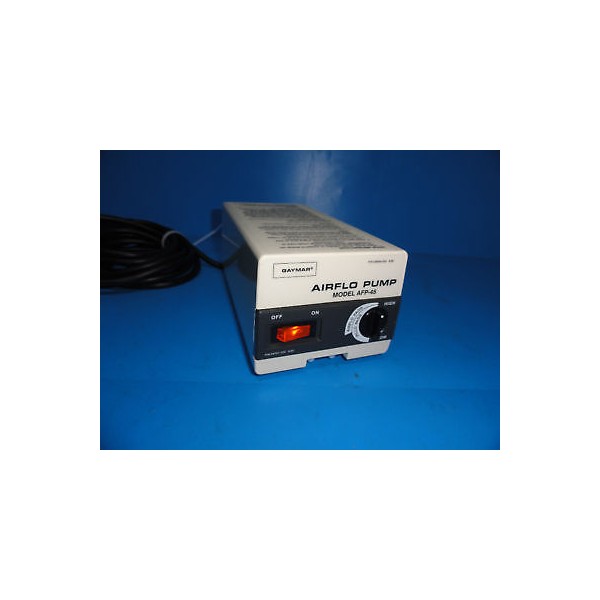

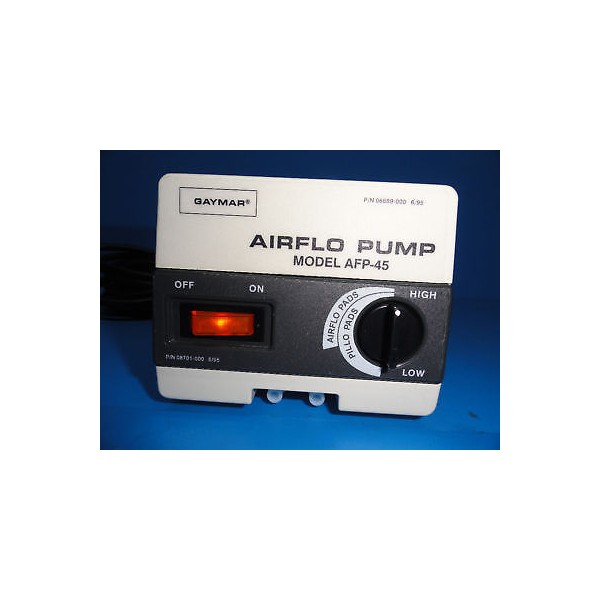

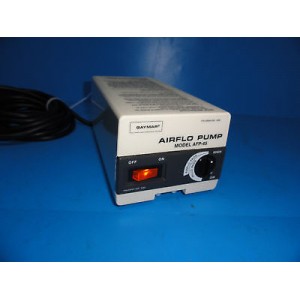

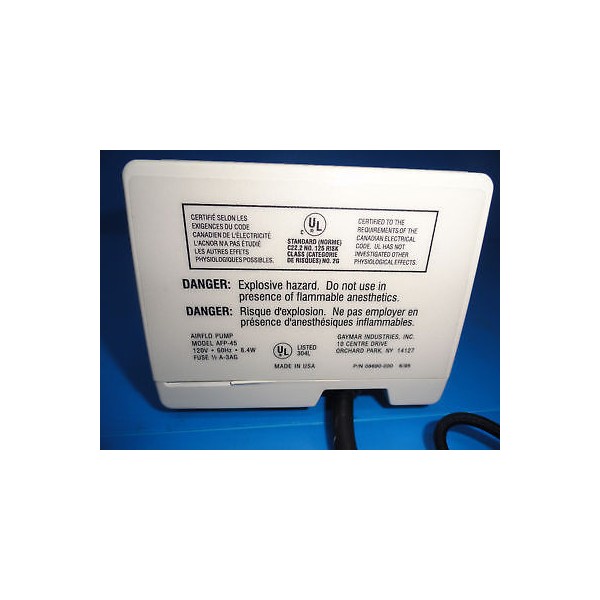

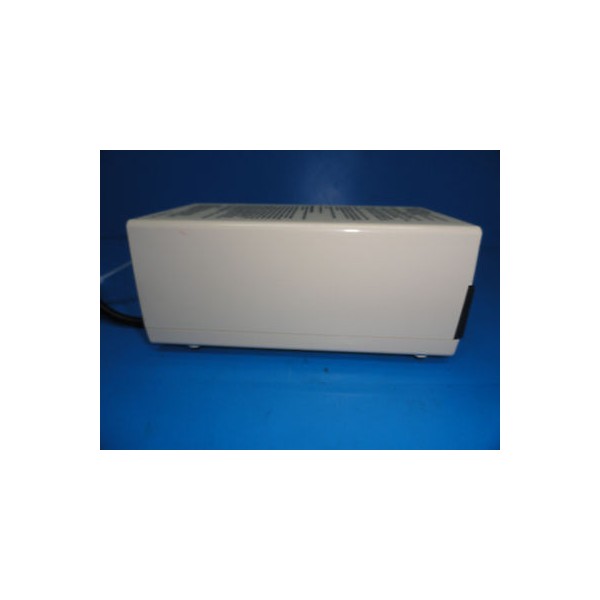

The Gaymar AFP45 Airflo Pump alternately inflates and deflates two sets of air cells in a PAF655 Airflo Pad .To minimize patient movement, inflation of one set of cells begins before the alternate set is fully deflated. Airflo Pads also provide air flow from the pad which helps minimize moisture buildup. The Airflo Pump may also be used with E301, EFF301,

and P500 Pillo Pads®

PHYSICAL

Dimensions 91/8" x 45/8" x 4" (23 cm x 12 cm x 10 cm)

Weight 5.4 pounds (2.4 kg)

Housing ABS Plastic

Ambient Temperature operating, 60°F to 90°F; storage, 20°F to 140°F

Range

Ambient humidity 0 to 95% RH

Flow/pressure 3.2 LPM minimum at 50 mm Hg

ELECTRICAL

Input 108-126 VAC, 60 Hz, 0.15 amp, 7.2 W

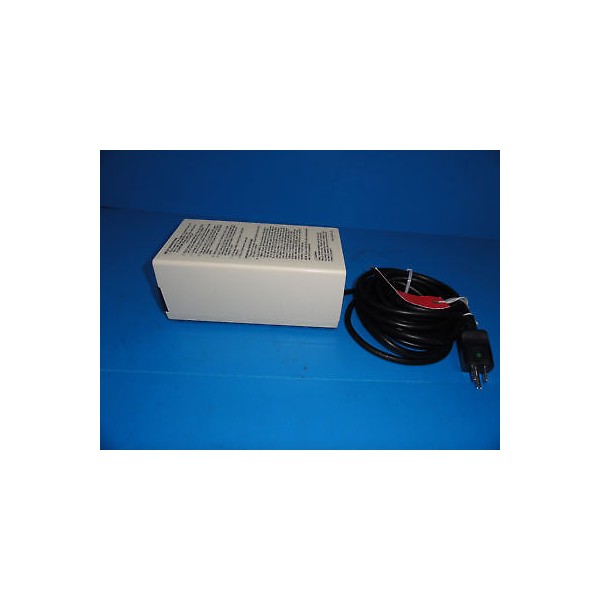

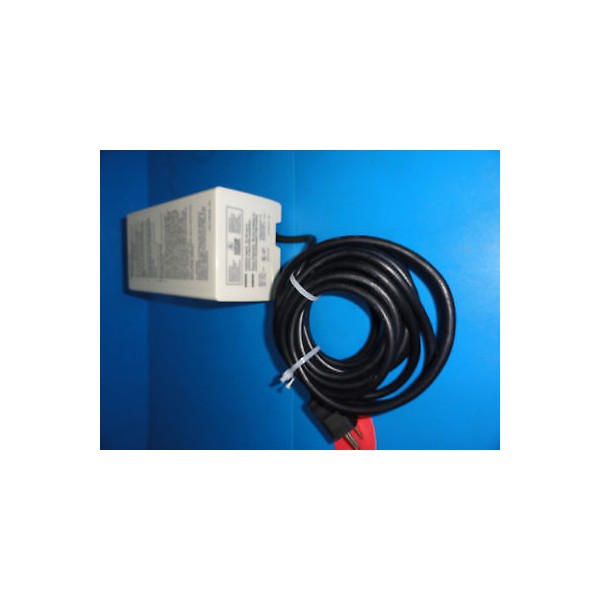

Power Cord 14 foot minimum usable length, No. 16 AWG cord with hospital grade plug

Fuse 1/2 amp, Type 3AG, fast-acting, 250 VAC

Current Leakage less than 25 μA typical; 100 μA maximum

(ungrounded)

Ground Resistance 0.15 ohms typical; 0.50 ohms maximum

No other extra part (Airflo pads and pillo pads  are not included)

Pre-owned item

Showable wear & tear!

Instruction manual:

http://www.gaymar.com/wcsstore/ExtendedSitesCatalogAssetStore/PDF/afp45_op_serv.pdf

Accessories available at:

http://www.homecare-supplies.com/medbrand.cfm?manhurl=Gaymar-GY&spage=2

Stocks ID: 2550-53

Comments:

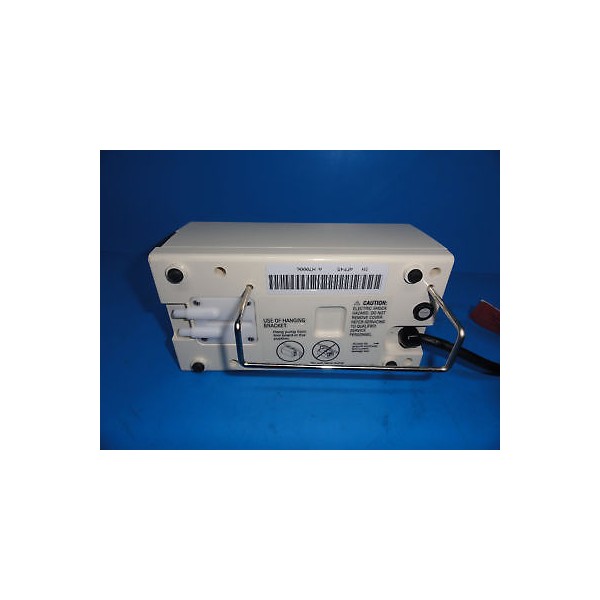

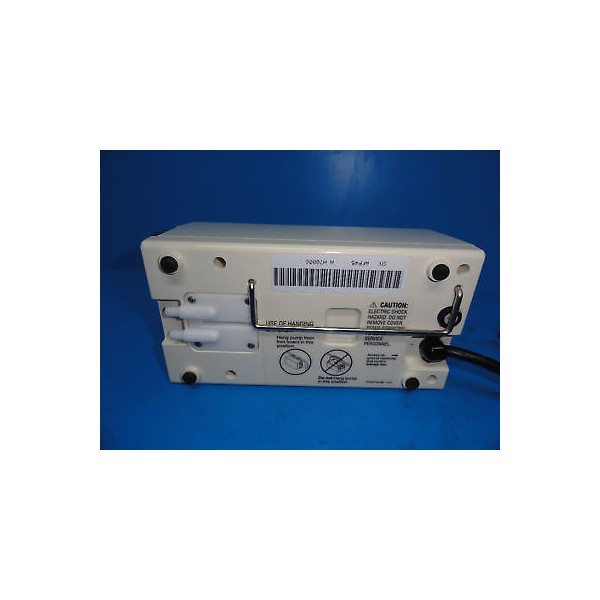

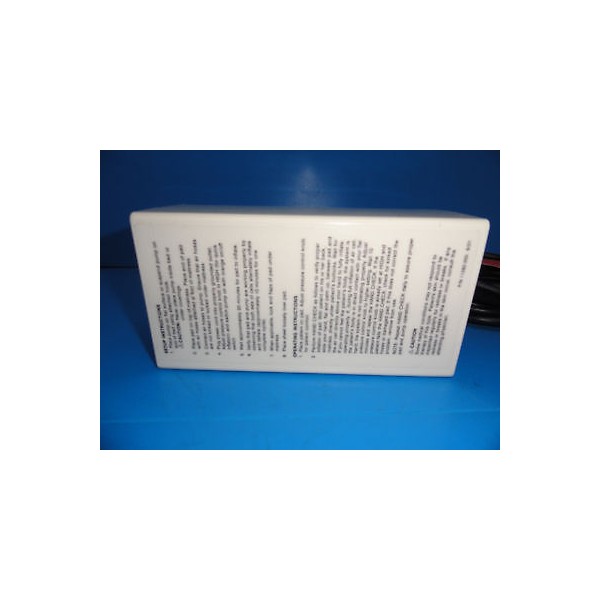

Kindly enlarge the images and see them with zooming.

Concern or query: Ask a Question

Overall Condition: Good (all available units enjoy similar condition .Images for one unit has been used)

Physical Condition:  Good (Kindly see all images before bidding!)Some showable wear and tear!

Working Condition:  Powers on otherwise untested --- being sold AS IS! (Exercise your judgment while buying as no returns accepted)

Completeness: (with everything seen in the pictures. Please look at all pictures and go through detail description before bidding.)

Sale is for pump only.

Airflo pads are not included!

Caution for Buyers:

DESPITE WHAT MAY BE WRITTEN IN THIS LISTING ALL ITEMS ARE SOLD 'AS IS' & 'WHERE IS' AND UNLESS THE SELLER HAS INDICATED OTHERWISE, THERE WILL BE NO REFUND.

 Available Documentation (manual etc.): nil
